JVN1A-48V-F

JVN1A-48V-F

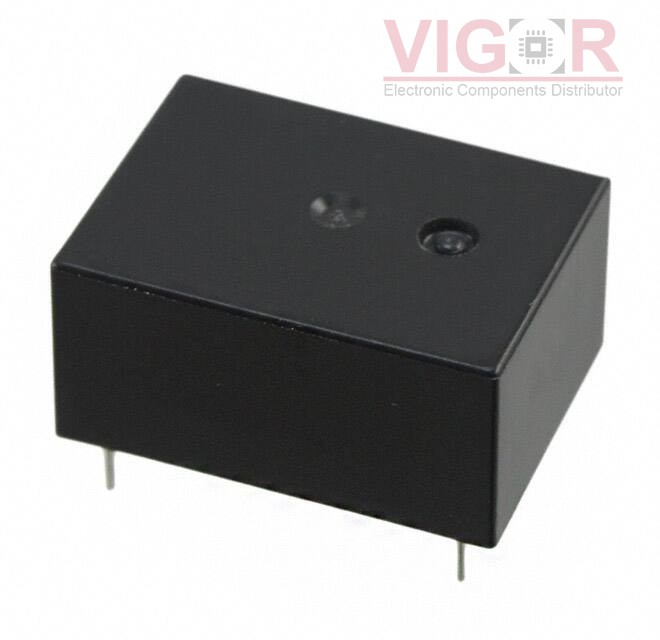

Image is for reference,
please contact us to get the real picture

Part No :

JVN1A-48V-F

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 16A 48V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
JVN1A-48V-F PDF
Availability
0 pieces
Unit Price
$5.90400

Current price of JVN1A-48V-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JVN1A-48V-F Specifications
Type Description
Series:JV-N
Package:Bulk
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:48VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):16 A
Switching Voltage:277VAC, 30VDC - Max
Coil Current:4.2 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Fully
Coil Insulation:-
Must Operate Voltage:36 VDC
Must Release Voltage:2.4 VDC
Operate Time:12 ms
Release Time:5 ms
Operating Temperature:-40°C ~ 70°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
