T9AS5L22-24

T9AS5L22-24

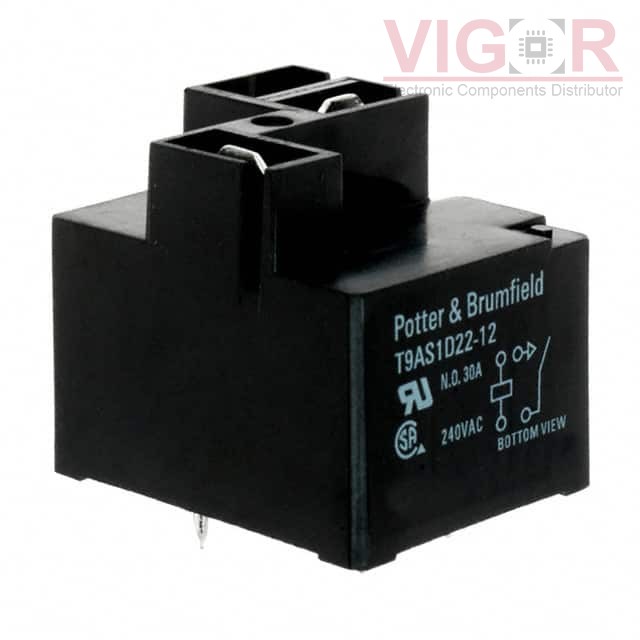

Image is for reference,
please contact us to get the real picture

Part No :

T9AS5L22-24

Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY GEN PURPOSE SPDT 20A 24V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
T9AS5L22-24 PDF
Availability
0 pieces
Unit Price
$5.10000

Current price of T9AS5L22-24 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

T9AS5L22-24 Specifications
Type Description
Series:T9A
Package:Bulk
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:24VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):20 A
Switching Voltage:277VAC - Max
Coil Current:37.5 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:Sealed - Fully
Coil Insulation:Class F
Must Operate Voltage:18 VDC
Must Release Voltage:2.4 VDC
Operate Time:15 ms
Release Time:15 ms
Operating Temperature:-55°C ~ 85°C
Contact Material:Silver Cadmium Oxide (AgCdO)
Relay Type:General Purpose
