HEV2AN-P-DC15V

HEV2AN-P-DC15V

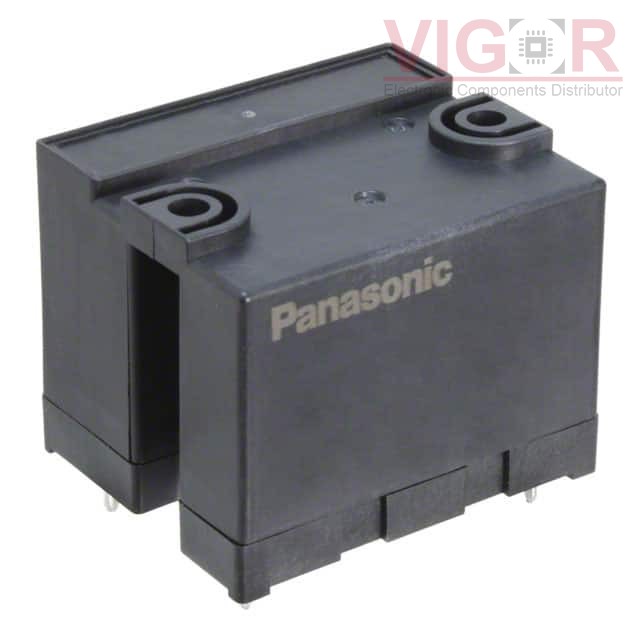

Image is for reference,
please contact us to get the real picture

Part No :

HEV2AN-P-DC15V

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE DPST 20A 15V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 23 - Jul 27 2025
DataSheet
HEV2AN-P-DC15V PDF
Availability
0 pieces
Unit Price
$82.75500

Current price of HEV2AN-P-DC15V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HEV2AN-P-DC15V Specifications
Type Description
Series:HE-V
Package:Tray
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:15VDC
Contact Form:DPST-NO (2 Form A)
Contact Rating (Current):20 A
Switching Voltage:1000VDC - Max
Coil Current:128 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Flux Protection
Coil Insulation:Class F
Must Operate Voltage:10.5 VDC
Must Release Voltage:0.75 VDC
Operate Time:30 ms
Release Time:10 ms
Operating Temperature:-40°C ~ 55°C
Contact Material:Silver Nickel (AgNi)
Relay Type:General Purpose
