ADW1124HLW

ADW1124HLW

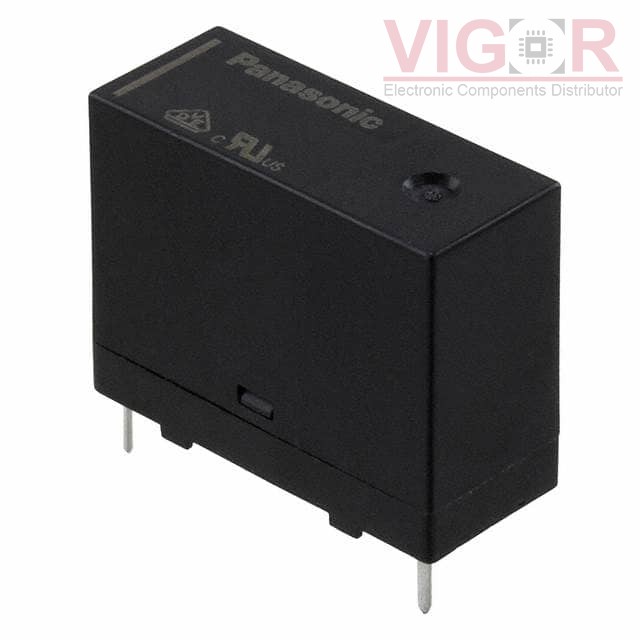

Image is for reference,
please contact us to get the real picture

Part No :

ADW1124HLW

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 16A 24V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
ADW1124HLW PDF
Availability
370 pieces
Unit Price
$5.16000

Current price of ADW1124HLW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADW1124HLW Specifications
Type Description
Series:DW-H
Package:Tray
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:24VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):16 A
Switching Voltage:277VAC - Max
Coil Current:8.3 mA
Coil Type:Latching, Single Coil
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Flux Protection
Coil Insulation:Class F
Must Operate Voltage:19.2 VDC
Must Release Voltage:-
Operate Time:15 ms
Release Time:15 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
