XT314524

XT314524

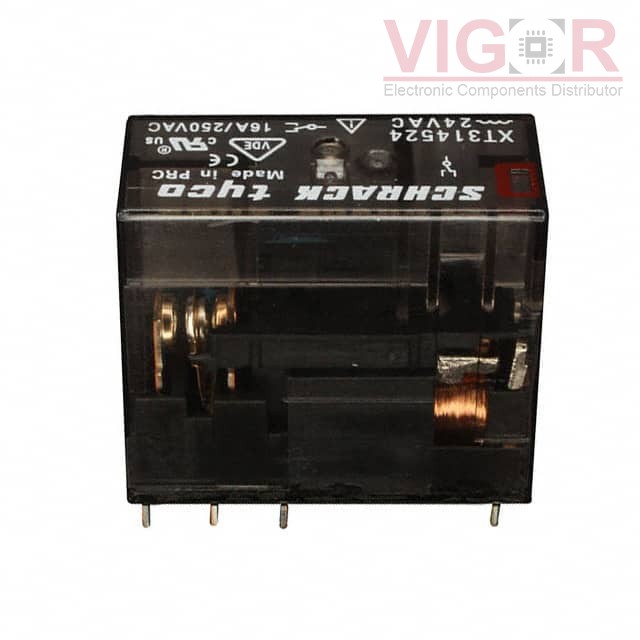

Image is for reference,
please contact us to get the real picture

Part No :

XT314524

Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY GEN PURPOSE SPDT 16A 24V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
XT314524 PDF
Availability
536 pieces
Unit Price
$10.44000

Current price of XT314524 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XT314524 Specifications
Type Description
Series:XT, SCHRACK
Package:Tube
Part Status:Active
Mounting Type:Socketable
Coil Voltage:24VAC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):16 A
Switching Voltage:400VAC - Max
Coil Current:31.6 mA
Coil Type:Non Latching
Features:-
Termination Style:Plug In
Seal Rating:-
Coil Insulation:Class F
Must Operate Voltage:18 VAC
Must Release Voltage:3.6 VAC
Operate Time:9 ms
Release Time:6 ms
Operating Temperature:-40°C ~ 70°C
Contact Material:Silver Nickel (AgNi)
Relay Type:General Purpose
