HL2-HTM-AC24V-F

HL2-HTM-AC24V-F

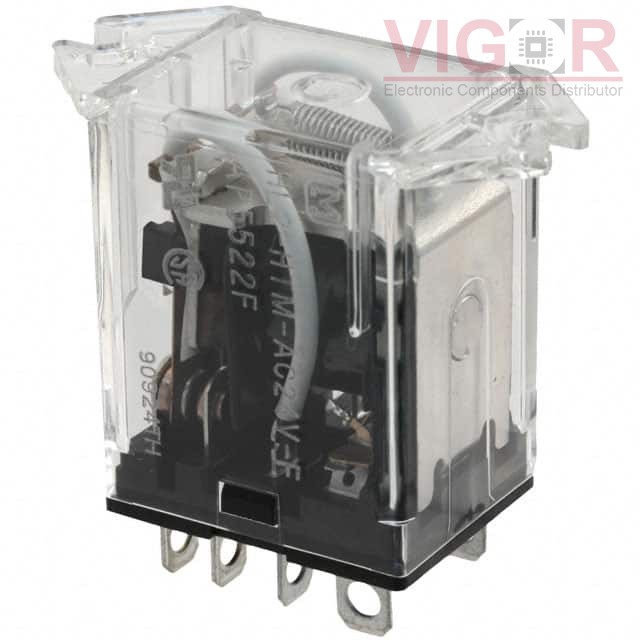

Image is for reference,
please contact us to get the real picture

Part No :

HL2-HTM-AC24V-F

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE DPDT 10A 24V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
HL2-HTM-AC24V-F PDF
Availability
0 pieces
Unit Price
$12.02000

Current price of HL2-HTM-AC24V-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HL2-HTM-AC24V-F Specifications
Type Description
Series:HL
Package:Bulk
Part Status:Obsolete
Mounting Type:Chassis Mount
Coil Voltage:24VAC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):10 A
Switching Voltage:125VAC - Nom
Coil Current:50 mA
Coil Type:Non Latching
Features:-
Termination Style:Quick Connect - 0.187" (4.7mm)
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:19.2 VAC
Must Release Voltage:7.2 VAC
Operate Time:25 ms
Release Time:25 ms
Operating Temperature:-50°C ~ 70°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
