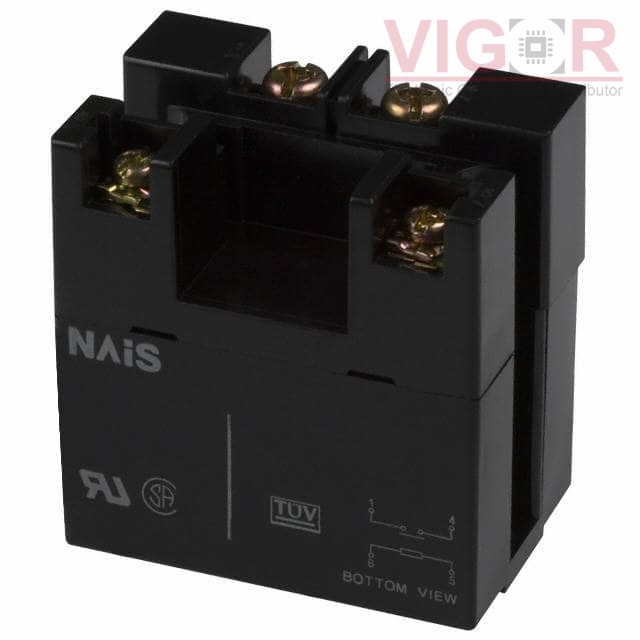

HE1AN-S-AC24V

Image is for reference,
please contact us to get the real picture

Part No :: HE1AN-S-AC24V

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE SPST 30A 24V

Catalog: Power Relays, Over 2 Amps

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: HE1AN-S-AC24V PDF

Availability: 0 pieces

Unit Price: ~~$28.00600~~

Current price of HE1AN-S-AC24V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HE1AN-S-AC24V Specifications

Type	Description
Series:	HE
Package:	Bulk
Part Status:	Active
Mounting Type:	Chassis Mount
Coil Voltage:	24VAC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	30 A
Switching Voltage:	277VAC, 30VDC - Max
Coil Current:	74 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	Screw Terminal
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	16.8 VAC
Must Release Voltage:	3.6 VAC
Operate Time:	30 ms
Release Time:	30 ms
Operating Temperature:	-50°C ~ 55°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
