JW2SN-B-DC48V

JW2SN-B-DC48V

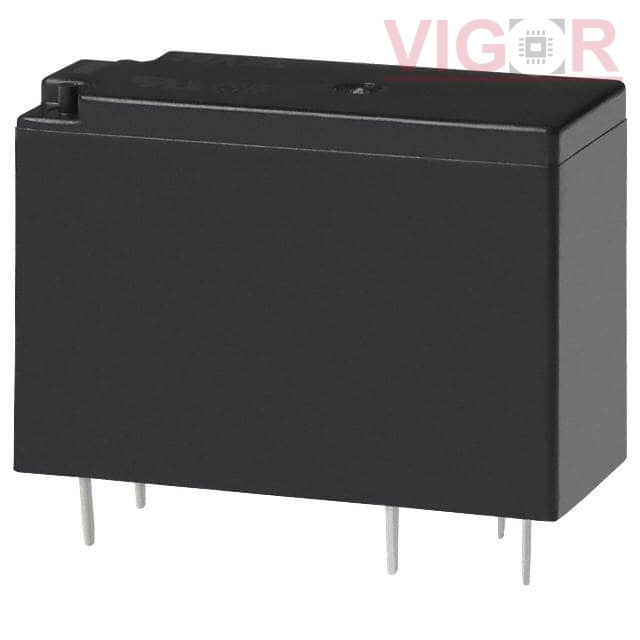

Image is for reference,
please contact us to get the real picture

Part No :

JW2SN-B-DC48V

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE DPDT 5A 48V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Aug 08 - Aug 12 2025
DataSheet
JW2SN-B-DC48V PDF
Availability
0 pieces
Unit Price
$2.98800

Current price of JW2SN-B-DC48V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JW2SN-B-DC48V Specifications
Type Description
Series:JW
Package:Tray
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:48VDC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):5 A
Switching Voltage:250VAC, 30VDC - Max
Coil Current:11 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Fully
Coil Insulation:Class B
Must Operate Voltage:33.6 VDC
Must Release Voltage:4.8 VDC
Operate Time:15 ms
Release Time:5 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Nickel (AgNi)
Relay Type:General Purpose
