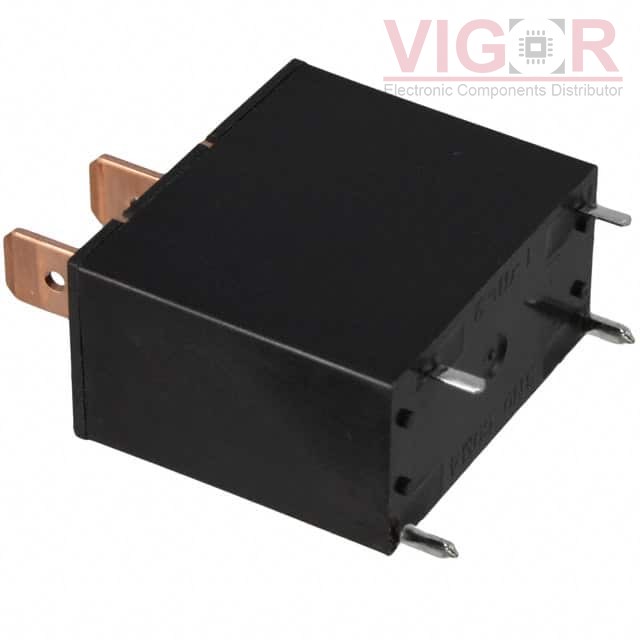

JM1AN-TMP-DC12V

Image is for reference,
please contact us to get the real picture

Part No :: JM1AN-TMP-DC12V

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE SPST 20A 12V

Catalog: Power Relays, Over 2 Amps

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: JM1AN-TMP-DC12V PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of JM1AN-TMP-DC12V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JM1AN-TMP-DC12V Specifications

Type	Description
Series:	JM
Package:	Bulk
Part Status:	Obsolete
Mounting Type:	Through Hole
Coil Voltage:	12VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	20 A
Switching Voltage:	250VAC - Max
Coil Current:	75 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:	Sealed - Flux Protection
Coil Insulation:	-
Must Operate Voltage:	8.4 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	20 ms
Release Time:	10 ms
Operating Temperature:	-40°C ~ 60°C
Contact Material:	Silver Alloy
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
