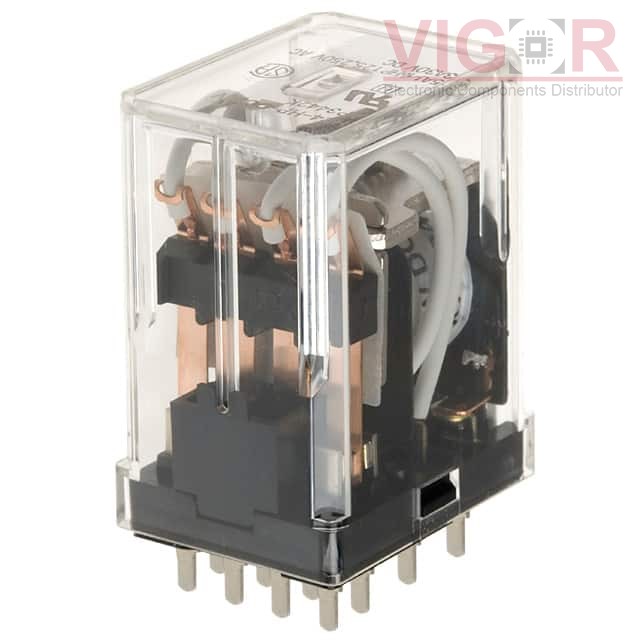

HC3-HL-AC48V-F

HC3-HL-AC48V-F

Image is for reference,
please contact us to get the real picture

Part No :

HC3-HL-AC48V-F

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE 3PDT 7A 48V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
HC3-HL-AC48V-F PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of HC3-HL-AC48V-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HC3-HL-AC48V-F Specifications
Type Description
Series:HC
Package:Bulk
Part Status:Obsolete
Mounting Type:Socketable
Coil Voltage:48VAC
Contact Form:3PDT (3 Form C)
Contact Rating (Current):7 A
Switching Voltage:250VAC - Max
Coil Current:25 mA
Coil Type:Non Latching
Features:Lighted Indicator
Termination Style:Plug In
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:38.4 VAC
Must Release Voltage:14.4 VAC
Operate Time:20 ms
Release Time:20 ms
Operating Temperature:-50°C ~ 60°C
Contact Material:Silver Alloy, Cadmium Free
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT ALZ21B4H

ALZ21B4H

RELAY GEN PURPOSE SPST 16A 4.5V

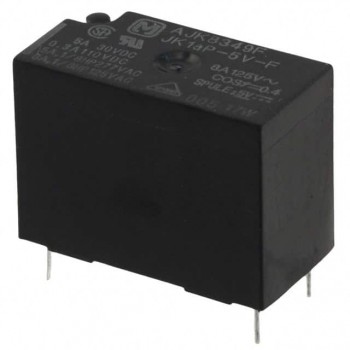

HOT JK1AP-18V

JK1AP-18V

RELAY GEN PURPOSE SPST 8A 18V

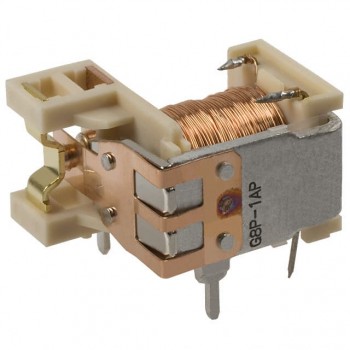

HOT G8P-1AP DC24
