HL2-H-AC6V-F

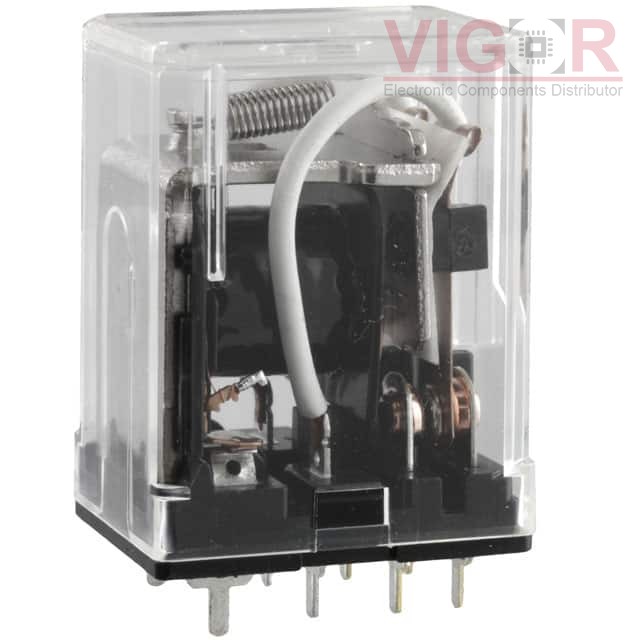

Image is for reference,
please contact us to get the real picture

Part No :: HL2-H-AC6V-F

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE DPDT 10A 6V

Catalog: Power Relays, Over 2 Amps

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: HL2-H-AC6V-F PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of HL2-H-AC6V-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HL2-H-AC6V-F Specifications

Type	Description
Series:	HL
Package:	Bulk
Part Status:	Obsolete
Mounting Type:	Socketable
Coil Voltage:	6VAC
Contact Form:	DPDT (2 Form C)
Contact Rating (Current):	10 A
Switching Voltage:	125VAC - Nom
Coil Current:	200 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	Plug In, Quick Connect - 0.187" (4.7mm)
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	4.8 VAC
Must Release Voltage:	1.8 VAC
Operate Time:	25 ms
Release Time:	25 ms
Operating Temperature:	-50°C ~ 70°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
