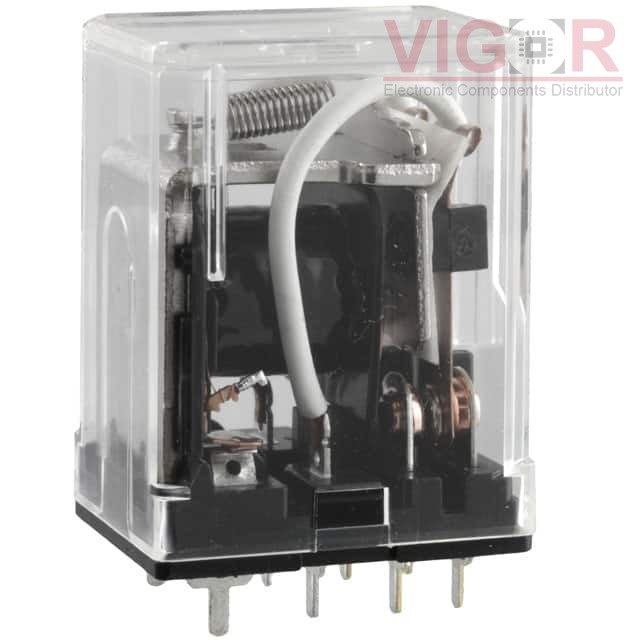

HL2-HP-DC24V

HL2-HP-DC24V

Image is for reference,
please contact us to get the real picture

Part No :

HL2-HP-DC24V

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE DPDT 10A 24V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
HL2-HP-DC24V PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of HL2-HP-DC24V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HL2-HP-DC24V Specifications
Type Description
Series:HL
Package:Bulk
Part Status:Obsolete
Mounting Type:Through Hole
Coil Voltage:24VDC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):10 A
Switching Voltage:125VAC - Nom
Coil Current:37 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:19.2 VDC
Must Release Voltage:2.4 VDC
Operate Time:10 ms
Release Time:5 ms
Operating Temperature:-50°C ~ 70°C
Contact Material:Silver Alloy
Relay Type:General Purpose
