PCLH-203A1S,000

PCLH-203A1S,000

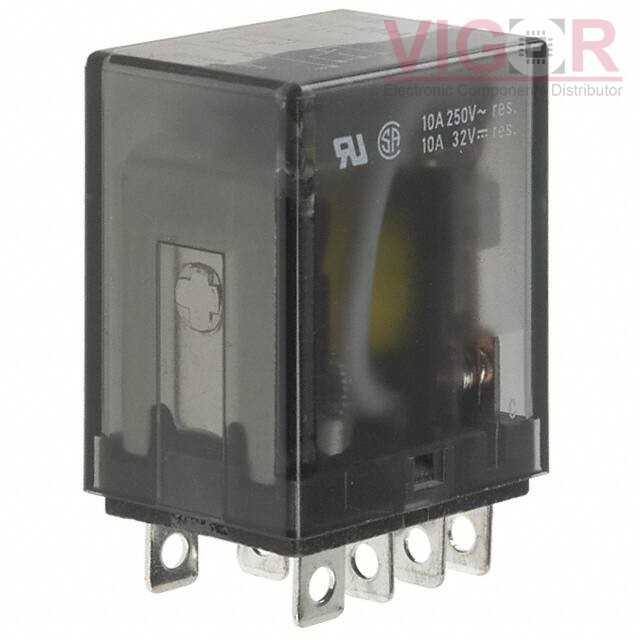

Image is for reference,
please contact us to get the real picture

Part No :

PCLH-203A1S,000

Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY GEN PURPOSE DPDT 15A 24V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Aug 09 - Aug 13 2025
DataSheet
PCLH-203A1S,000 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PCLH-203A1S,000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PCLH-203A1S,000 Specifications
Type Description
Series:PCLH, OEG
Package:Tray
Part Status:Obsolete
Mounting Type:Socketable
Coil Voltage:24VAC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):15 A
Switching Voltage:120VAC - Max
Coil Current:-
Coil Type:Non Latching
Features:-
Termination Style:Plug In, Quick Connect - 0.187" (4.7mm)
Seal Rating:-
Coil Insulation:Class F
Must Operate Voltage:19.2 VAC
Must Release Voltage:7.2 VAC
Operate Time:20 ms
Release Time:20 ms
Operating Temperature:-40°C ~ 55°C
Contact Material:Silver Cadmium Oxide (AgCdO)
Relay Type:General Purpose
