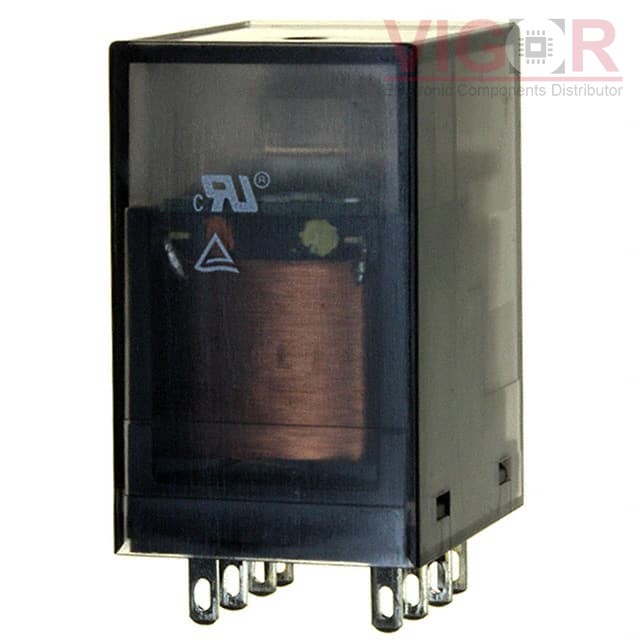

PT22AL24B

PT22AL24B

Image is for reference,
please contact us to get the real picture

Part No :

PT22AL24B

Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY GEN PURPOSE DPDT 12A 24V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
PT22AL24B PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PT22AL24B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PT22AL24B Specifications
Type Description
Series:PTH, SCHRACK
Package:Bulk
Part Status:Obsolete
Mounting Type:Socketable
Coil Voltage:24VDC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):12 A
Switching Voltage:440VAC - Max
Coil Current:30.8 mA
Coil Type:Non Latching
Features:Lighted Indicator
Termination Style:Plug In
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:18 VDC
Must Release Voltage:2.4 VDC
Operate Time:20 ms
Release Time:20 ms
Operating Temperature:-45°C ~ 70°C
Contact Material:Silver Nickel (AgNi)
Relay Type:General Purpose
