PCLH-103D1SP,000

PCLH-103D1SP,000

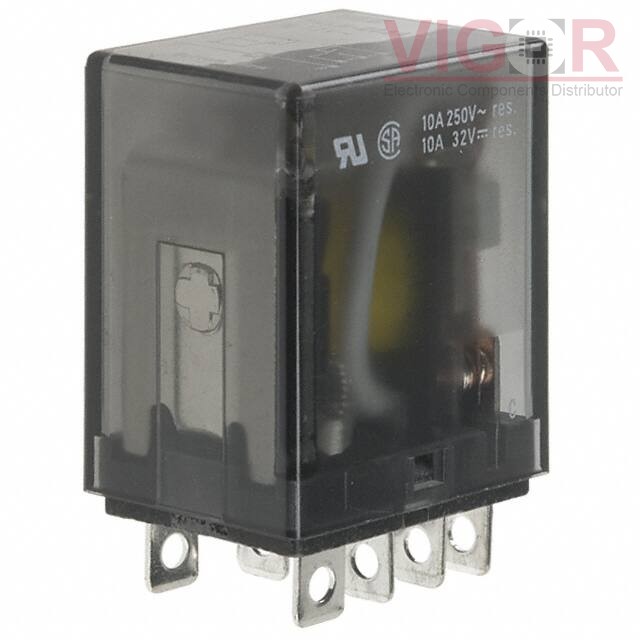

Image is for reference,
please contact us to get the real picture

Part No :

PCLH-103D1SP,000

Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY GEN PURPOSE SPDT 15A 24V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Aug 17 - Aug 21 2025
DataSheet
PCLH-103D1SP,000 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PCLH-103D1SP,000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PCLH-103D1SP,000 Specifications
Type Description
Series:PCLH, OEG
Package:Bulk
Part Status:Obsolete
Mounting Type:Through Hole
Coil Voltage:24VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):15 A
Switching Voltage:250VAC, 24VDC - Max
Coil Current:37.5 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:-
Coil Insulation:Class F
Must Operate Voltage:19.2 VDC
Must Release Voltage:2.4 VDC
Operate Time:15 ms
Release Time:8 ms
Operating Temperature:-40°C ~ 55°C
Contact Material:Silver Cadmium Oxide (AgCdO)
Relay Type:General Purpose
