JTNV1AS-TMP-F-DC18V

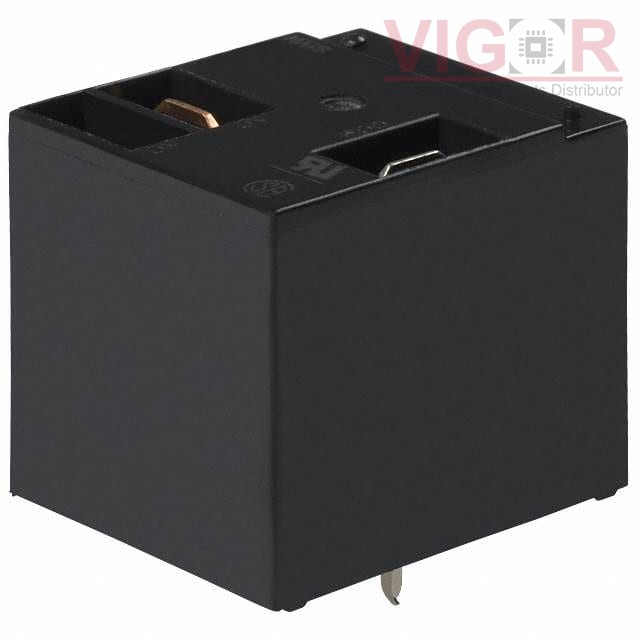

Image is for reference,
please contact us to get the real picture

Part No :: JTNV1AS-TMP-F-DC18V

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE SPST 30A 18V

Catalog: Power Relays, Over 2 Amps

Shipped from: HK warehouse

Expected Shipping Date: Aug 19 - Aug 23 2025

DataSheet: JTNV1AS-TMP-F-DC18V PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of JTNV1AS-TMP-F-DC18V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JTNV1AS-TMP-F-DC18V Specifications

Type	Description
Series:	JT-N
Package:	Bulk
Part Status:	Obsolete
Mounting Type:	Through Hole
Coil Voltage:	18VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	30 A
Switching Voltage:	277VAC - Max
Coil Current:	44.4 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:	Sealed - Fully
Coil Insulation:	Class F
Must Operate Voltage:	13.5 VDC
Must Release Voltage:	1.8 VDC
Operate Time:	20 ms
Release Time:	10 ms
Operating Temperature:	-55°C ~ 85°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
