JC1AF-S-DC6V

JC1AF-S-DC6V

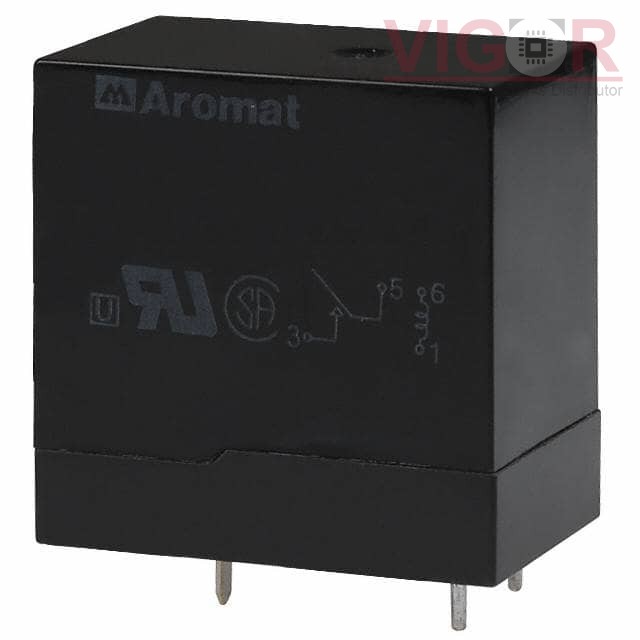

Image is for reference,
please contact us to get the real picture

Part No :

JC1AF-S-DC6V

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 15A 6V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Aug 23 - Aug 27 2025
DataSheet
JC1AF-S-DC6V PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of JC1AF-S-DC6V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JC1AF-S-DC6V Specifications
Type Description
Series:JC
Package:Bulk
Part Status:Obsolete
Mounting Type:Socketable
Coil Voltage:6VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):15 A
Switching Voltage:250VAC - Max
Coil Current:150 mA
Coil Type:Non Latching
Features:-
Termination Style:Plug In, Quick Connect - 0.187" (4.7mm)
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:4.8 VDC
Must Release Voltage:0.6 VDC
Operate Time:15 ms
Release Time:2 ms
Operating Temperature:-50°C ~ 60°C
Contact Material:Silver Alloy
Relay Type:General Purpose
