ALZ22F12W

ALZ22F12W

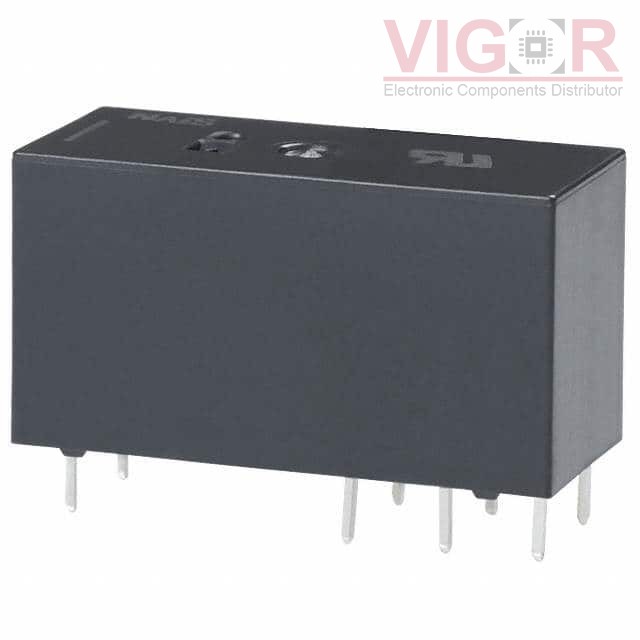

Image is for reference,
please contact us to get the real picture

Part No :

ALZ22F12W

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 16A 12V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Aug 24 - Aug 28 2025
DataSheet
ALZ22F12W PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of ALZ22F12W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ALZ22F12W Specifications
Type Description
Series:ALZ
Package:Bulk
Part Status:Obsolete
Mounting Type:Through Hole
Coil Voltage:12VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):16 A
Switching Voltage:440VAC - Max
Coil Current:33.3 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Fully
Coil Insulation:Class F
Must Operate Voltage:8.4 VDC
Must Release Voltage:1.2 VDC
Operate Time:15 ms
Release Time:5 ms
Operating Temperature:-40°C ~ 105°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
