ALE73B09

ALE73B09

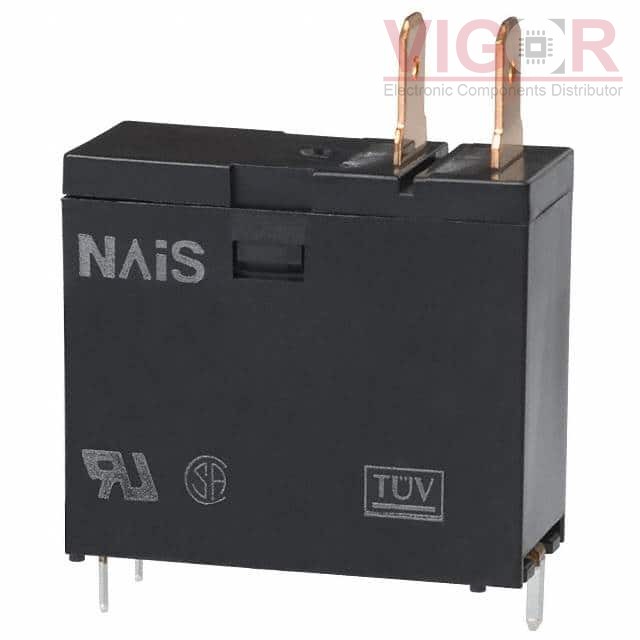

Image is for reference,
please contact us to get the real picture

Part No :

ALE73B09

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 16A 9V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Aug 12 - Aug 16 2025
DataSheet
ALE73B09 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of ALE73B09 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ALE73B09 Specifications
Type Description
Series:ALE
Package:Bulk
Part Status:Obsolete
Mounting Type:Through Hole
Coil Voltage:9VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):16 A
Switching Voltage:277VAC - Max
Coil Current:22.2 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin, Quick Connect - 0.187" (4.7mm)
Seal Rating:-
Coil Insulation:Class B
Must Operate Voltage:6.75 VDC
Must Release Voltage:0.45 VDC
Operate Time:20 ms
Release Time:25 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
