JWD-172-7

JWD-172-7

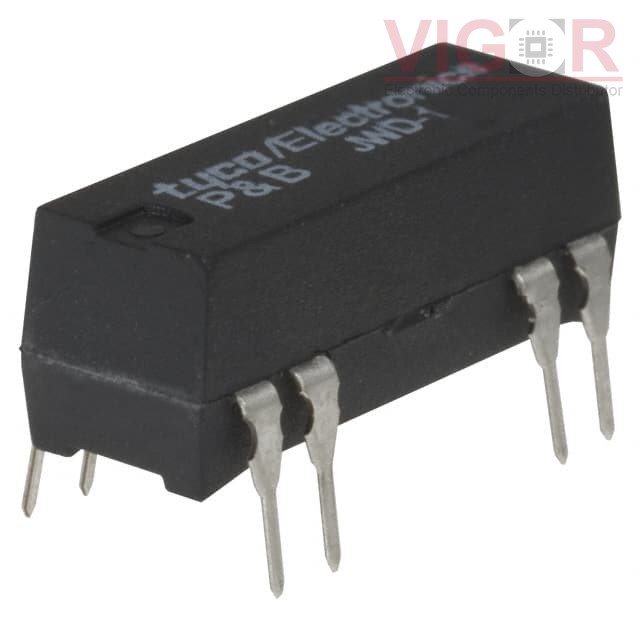

Image is for reference,
please contact us to get the real picture

Part No :

JWD-172-7

Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY REED SPDT 500MA 12V
Catalog
Reed Relays
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
JWD-172-7 PDF
Availability
0 pieces
Unit Price
$11.11050

Current price of JWD-172-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JWD-172-7 Specifications
Type Description
Series:JWD
Package:Tube
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:12VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):500 mA
Switching Voltage:28VDC - Max
Coil Current:24 mA
Coil Type:Non Latching
Features:Diode
Termination Style:PC Pin
Seal Rating:-
Must Operate Voltage:9.6 VDC
Must Release Voltage:1 VDC
Operate Time:1.5 ms
Release Time:3 ms
Operating Temperature:-35°C ~ 85°C
Contact Material:Ruthenium (Ru)
