JWD-171-20

JWD-171-20

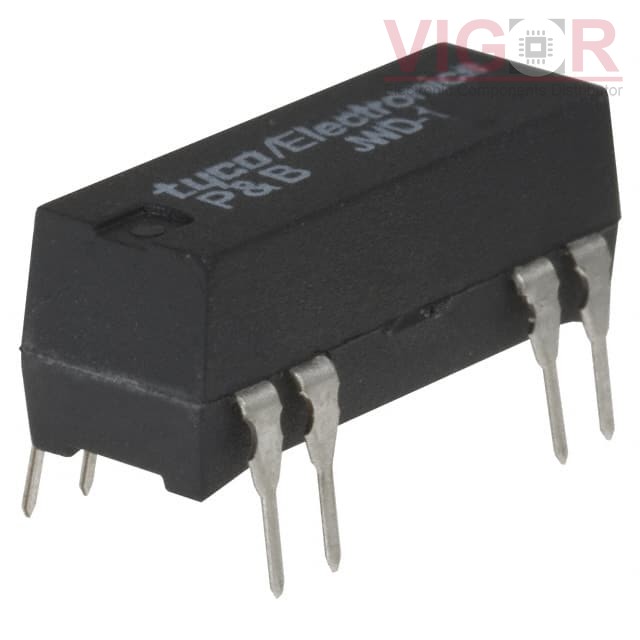

Image is for reference,
please contact us to get the real picture

Part No :

JWD-171-20

Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY REED SPST 500MA 24V
Catalog
Reed Relays
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
JWD-171-20 PDF
Availability
0 pieces
Unit Price
$13.77000

Current price of JWD-171-20 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JWD-171-20 Specifications
Type Description
Series:JWD
Package:Tube
Part Status:Discontinued at Digi-Key
Mounting Type:Through Hole
Coil Voltage:24VDC
Contact Form:SPST-NC (1 Form B)
Contact Rating (Current):500 mA
Switching Voltage:100VDC - Max
Coil Current:10.9 mA
Coil Type:Non Latching
Features:Diode
Termination Style:PC Pin
Seal Rating:-
Must Operate Voltage:19.2 VDC
Must Release Voltage:2 VDC
Operate Time:1.5 ms
Release Time:0.5 ms
Operating Temperature:-35°C ~ 85°C
Contact Material:Ruthenium (Ru)
