JWD-172-161

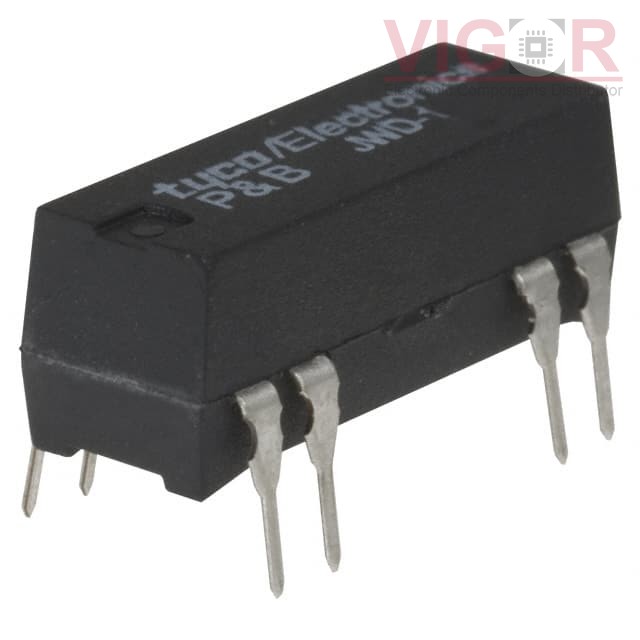

Image is for reference,
please contact us to get the real picture

Part No :: JWD-172-161

Manufacturer: TE Connectivity Potter & Brumfield Relays

Description: RELAY REED SPDT 500MA 12V

Catalog: Reed Relays

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: JWD-172-161 PDF

Availability: 0 pieces

Unit Price: ~~$12.10552~~

Current price of JWD-172-161 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JWD-172-161 Specifications

Type	Description
Series:	JWD
Package:	Tube
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	12VDC
Contact Form:	SPDT (1 Form C)
Contact Rating (Current):	500 mA
Switching Voltage:	28VDC - Max
Coil Current:	12 mA
Coil Type:	Non Latching
Features:	Diode
Termination Style:	PC Pin
Seal Rating:	-
Must Operate Voltage:	9.6 VDC
Must Release Voltage:	1 VDC
Operate Time:	1.5 ms
Release Time:	3 ms
Operating Temperature:	-35°C ~ 85°C
Contact Material:	Ruthenium (Ru)

Please confirm the specifications of the products when ordering.
