Current price of 8L21-24-11 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

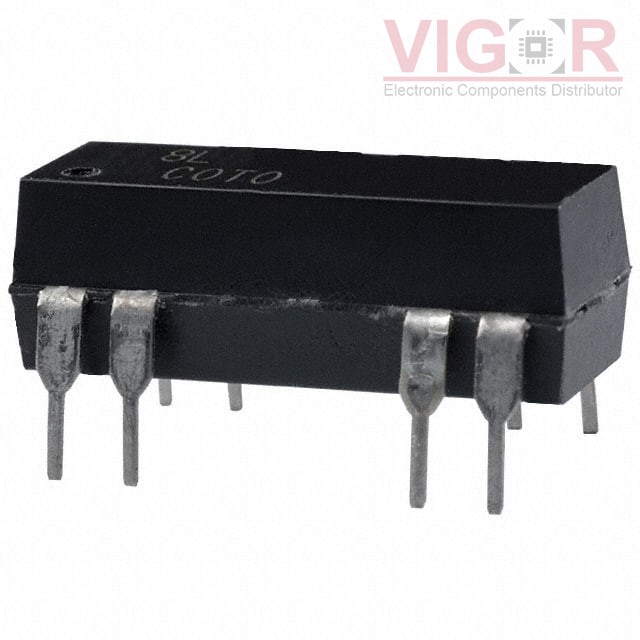

Type | Description |
---|---|
Series: | 8L |
Package: | Tube |
Part Status: | Obsolete |
Mounting Type: | Through Hole |
Coil Voltage: | 24VDC |
Contact Form: | SPST-NC (1 Form B) |
Contact Rating (Current): | 500 mA |
Switching Voltage: | 200VAC, 200VDC - Max |
Coil Current: | 12 mA |
Coil Type: | Non Latching |
Features: | Diode, Electrostatic Shield |
Termination Style: | PC Pin |
Seal Rating: | - |
Must Operate Voltage: | 19.2 VDC |
Must Release Voltage: | 2 VDC |
Operate Time: | 0.5 ms |
Release Time: | 1 ms |
Operating Temperature: | -20°C ~ 85°C |
Contact Material: | - |
