J1MAPD-26XM

J1MAPD-26XM

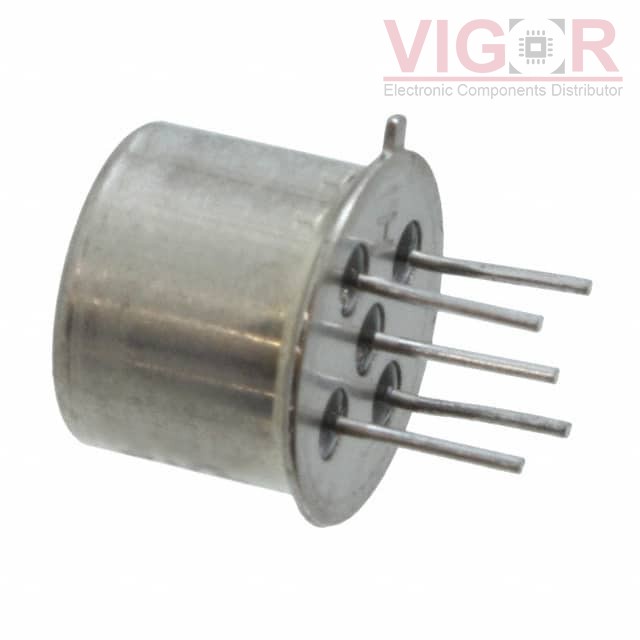

Image is for reference,
please contact us to get the real picture

Part No :

J1MAPD-26XM

Manufacturer
TE Connectivity Aerospace Defense and Marine
Description
RELAY GEN PURPOS SPDT 1A 26.5VDC
Catalog
Signal Relays, Up to 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
J1MAPD-26XM PDF
Availability
0 pieces
Unit Price
$62.65600

Current price of J1MAPD-26XM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

J1MAPD-26XM Specifications
Type Description
Series:Military, MIL-R-39016/23, 1MA, CII
Package:Bulk
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:26.5VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):1 A
Switching Voltage:28VDC - Nom
Coil Current:13.2 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Hermetically
Coil Insulation:-
Must Operate Voltage:14.2 VDC
Must Release Voltage:1.37 VDC
Operate Time:2 ms
Release Time:4 ms
Operating Temperature:-65°C ~ 125°C
Contact Material:-
Relay Type:General Purpose
