AGN200S24

AGN200S24

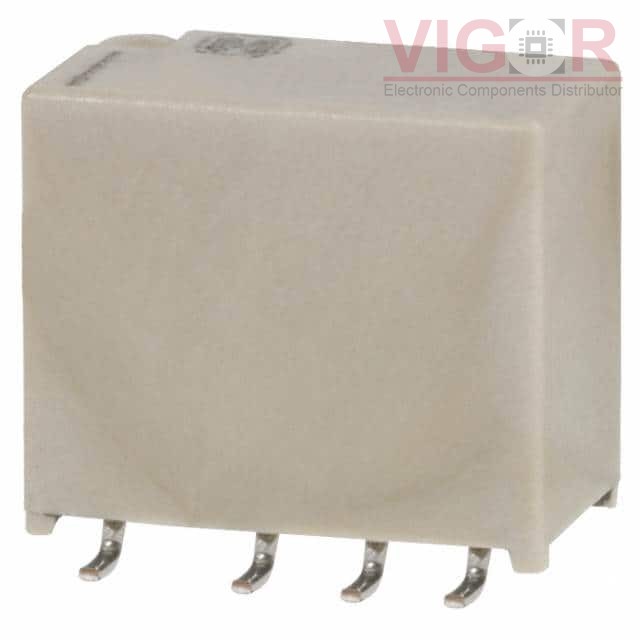

Image is for reference,
please contact us to get the real picture

Part No :

AGN200S24

Manufacturer
Panasonic
Description
RELAY TELECOM DPDT 1A 24VDC
Catalog
Signal Relays, Up to 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
AGN200S24 PDF
Availability
0 pieces
Unit Price
$3.99000

Current price of AGN200S24 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AGN200S24 Specifications
Type Description
Series:AGN
Package:Tube
Part Status:Active
Mounting Type:Surface Mount
Coil Voltage:24VDC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):1 A
Switching Voltage:125VAC, 110VDC - Max
Coil Current:9.6 mA
Coil Type:Non Latching
Features:-
Termination Style:Gull Wing
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:18 VDC
Must Release Voltage:2.4 VDC
Operate Time:4 ms
Release Time:4 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Palladium (AgPd), Gold (Au)
Relay Type:Telecom
