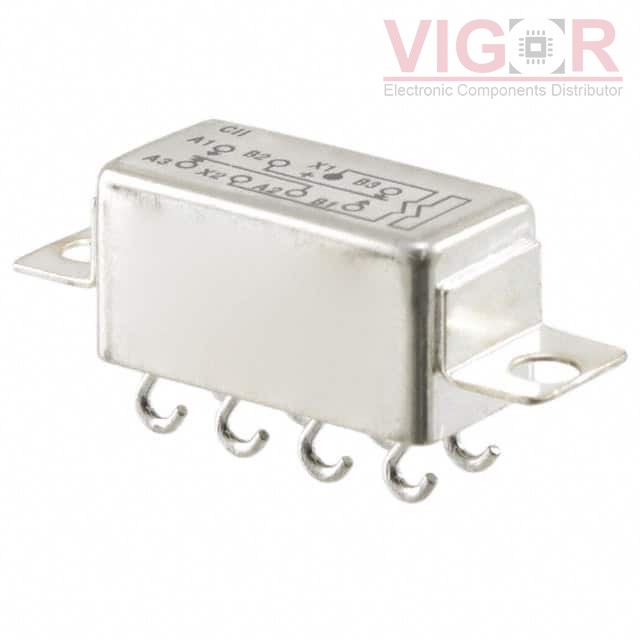

HMB1130K01M

HMB1130K01M

Image is for reference,
please contact us to get the real picture

Part No :

HMB1130K01M

Manufacturer
TE Connectivity Aerospace Defense and Marine
Description
RELAY GEN PURPOS DPDT 2A 26.5VDC
Catalog
Signal Relays, Up to 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Aug 11 - Aug 15 2025
DataSheet
HMB1130K01M PDF
Availability
30 pieces
Unit Price
$155.41000

Current price of HMB1130K01M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HMB1130K01M Specifications
Type Description
Series:Military, MIL-R-39016/22, HMB, CII
Package:Bulk
Part Status:Active
Mounting Type:Chassis Mount
Coil Voltage:26.5VDC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):2 A
Switching Voltage:28VDC - Nom
Coil Current:37.9 mA
Coil Type:Non Latching
Features:-
Termination Style:Solder Hook
Seal Rating:Sealed - Hermetically
Coil Insulation:-
Must Operate Voltage:15 VDC
Must Release Voltage:1.5 VDC
Operate Time:5 ms
Release Time:5 ms
Operating Temperature:-65°C ~ 125°C
Contact Material:-
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT AGQ20TA24X

AGQ20TA24X

RELAY GEN PURPOSE DPDT 2A 24VDC

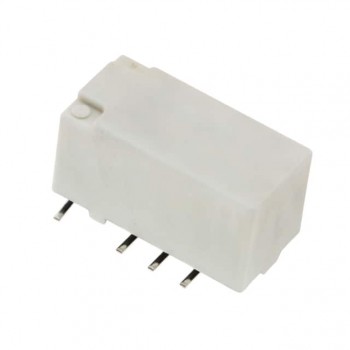

HOT TXD2SA-1.5V
