Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of CSC06A0333K0GPA is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | CSC |
Package: | Bulk |
Part Status: | Active |
Circuit Type: | Isolated |
Resistance (Ohms): | 33k |
Tolerance: | ±2% |
Number of Resistors: | 3 |
Resistor Matching Ratio: | - |
Resistor-Ratio-Drift: | ±50ppm/°C |
Number of Pins: | 6 |
Power Per Element: | 300mW |
Temperature Coefficient: | ±100ppm/°C |
Operating Temperature: | -55°C ~ 125°C |
Applications: | - |
Mounting Type: | Through Hole |
Package / Case: | 6-SIP |
Supplier Device Package: | 6-SIP |
Size / Dimension: | 0.590" L x 0.098" W (14.99mm x 2.49mm) |
Height - Seated (Max): | 0.195" (4.95mm) |

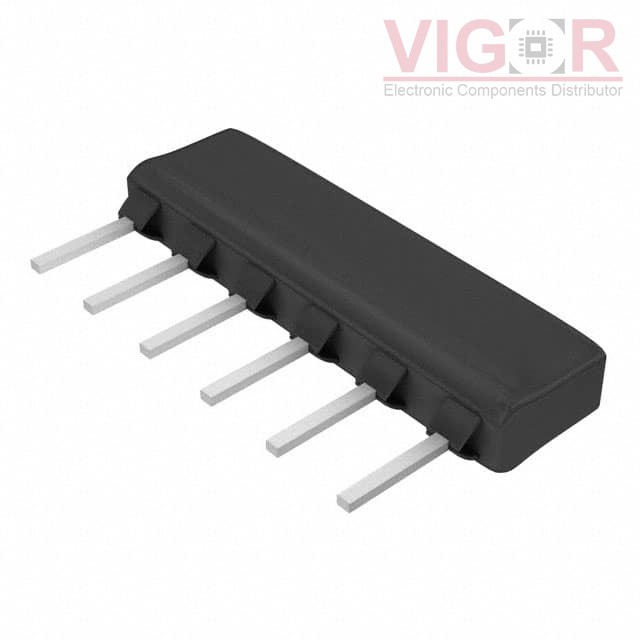

RES ARRAY 3 RES 33K OHM 6SIP
