Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 743C043103JP is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | 743 |
Package: | Tape & Reel (TR)Cut Tape (CT) |
Part Status: | Obsolete |
Circuit Type: | Isolated |
Resistance (Ohms): | 10k |
Tolerance: | ±5% |
Number of Resistors: | 2 |
Resistor Matching Ratio: | - |
Resistor-Ratio-Drift: | - |
Number of Pins: | 4 |
Power Per Element: | 100mW |
Temperature Coefficient: | ±200ppm/°C |
Operating Temperature: | -55°C ~ 125°C |
Applications: | - |
Mounting Type: | Surface Mount |
Package / Case: | 1008, Concave, Long Side Terminals |
Supplier Device Package: | - |
Size / Dimension: | 0.100" L x 0.079" W (2.54mm x 2.00mm) |
Height - Seated (Max): | 0.028" (0.70mm) |

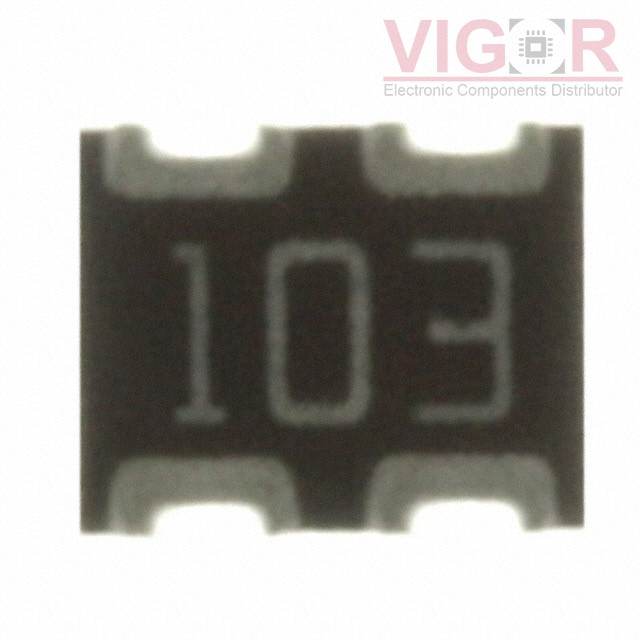

RES ARRAY 2 RES 10K OHM 1008
