4816P-1-560LF

4816P-1-560LF

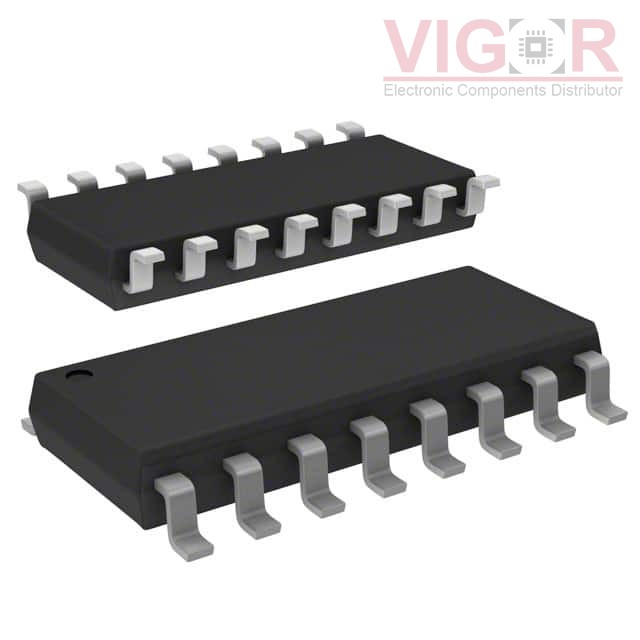

Image is for reference,
please contact us to get the real picture

Part No :

4816P-1-560LF

Manufacturer
J.W. Miller / Bourns
Description
RES ARRAY 8 RES 56 OHM 16SOIC
Catalog
Arrays/Networks Resistors
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
4816P-1-560LF PDF
Availability
1279 pieces
Unit Price
$1.19000

Current price of 4816P-1-560LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

4816P-1-560LF Specifications
Type Description
Series:4800P
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Circuit Type:Isolated
Resistance (Ohms):56
Tolerance:±2%
Number of Resistors:8
Resistor Matching Ratio:-
Resistor-Ratio-Drift:-
Number of Pins:16
Power Per Element:160mW
Temperature Coefficient:±100ppm/°C
Operating Temperature:-55°C ~ 125°C
Applications:Automotive AEC-Q200
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.220", 5.59mm Width)
Supplier Device Package:16-SOM
Size / Dimension:0.440" L x 0.220" W (11.18mm x 5.59mm)
Height - Seated (Max):0.094" (2.40mm)
