Y1685V0056TT0W

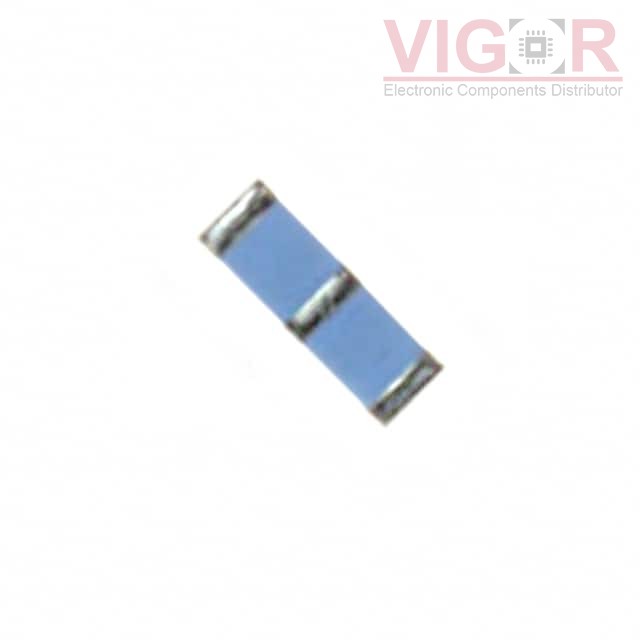

Image is for reference,
please contact us to get the real picture

Part No :: Y1685V0056TT0W

Manufacturer: VPG Foil

Description: RES NETWORK 2 RES MULT OHM 1505

Catalog: Arrays/Networks Resistors

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: Y1685V0056TT0W PDF

Availability: 0 pieces

Unit Price: ~~$12.30250~~

Current price of Y1685V0056TT0W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Y1685V0056TT0W Specifications

Type	Description
Series:	VFCD1505
Package:	Tray
Part Status:	Active
Circuit Type:	Voltage Divider
Resistance (Ohms):	1k, 9k
Tolerance:	±0.01%
Number of Resistors:	2
Resistor Matching Ratio:	±0.01%
Resistor-Ratio-Drift:	±0.4ppm/°C
Number of Pins:	3
Power Per Element:	50mW
Temperature Coefficient:	±0.2ppm/°C
Operating Temperature:	-55°C ~ 125°C
Applications:	Voltage Divider (TCR Matched)
Mounting Type:	Surface Mount
Package / Case:	1505 (3812 Metric)
Supplier Device Package:	-
Size / Dimension:	0.150" L x 0.050" W (3.81mm x 1.27mm)
Height - Seated (Max):	0.025" (0.64mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

766161563GPTR7

RES ARRAY 15 RES 56K OHM 16SOIC

HOT

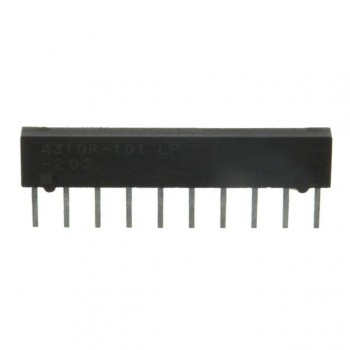

4310R-101-475

RES ARRAY 9 RES 4.7M OHM 10SIP

HOT

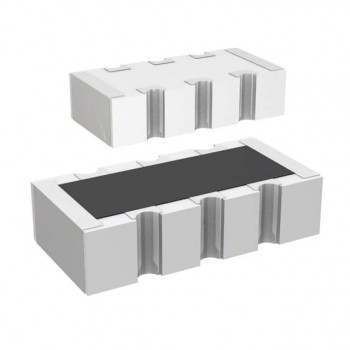

RAVF104DFT75R0
