Y1685V0005TT9R

Y1685V0005TT9R

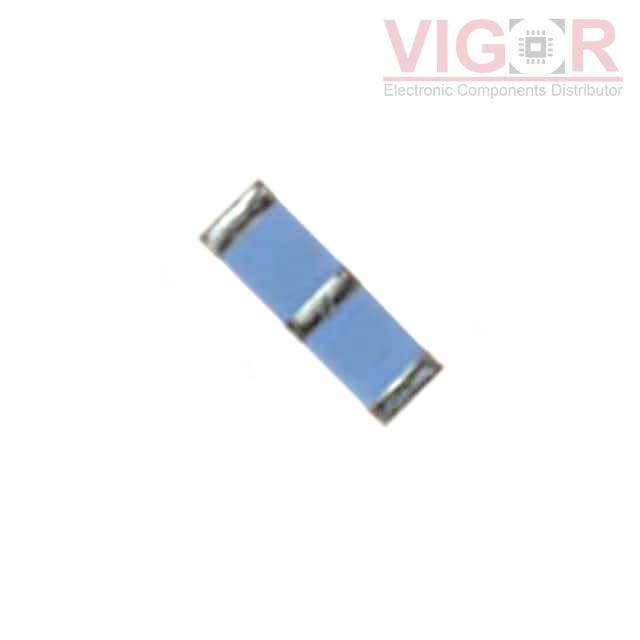

Image is for reference,
please contact us to get the real picture

Part No :

Y1685V0005TT9R

Manufacturer
VPG Foil
Description
RES NETWORK 2 RES MULT OHM 1505
Catalog
Arrays/Networks Resistors
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
Y1685V0005TT9R PDF
Availability
0 pieces
Unit Price
$12.04980

Current price of Y1685V0005TT9R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Y1685V0005TT9R Specifications
Type Description
Series:VFCD1505
Package:Tape & Reel (TR)
Part Status:Active
Circuit Type:Voltage Divider
Resistance (Ohms):5k, 10k
Tolerance:±0.01%
Number of Resistors:2
Resistor Matching Ratio:±0.01%
Resistor-Ratio-Drift:±0.4ppm/°C
Number of Pins:3
Power Per Element:50mW
Temperature Coefficient:±0.2ppm/°C
Operating Temperature:-55°C ~ 125°C
Applications:Voltage Divider (TCR Matched)
Mounting Type:Surface Mount
Package / Case:1505 (3812 Metric)
Supplier Device Package:-
Size / Dimension:0.150" L x 0.050" W (3.81mm x 1.27mm)
Height - Seated (Max):0.025" (0.64mm)
