RAVF104DFT560R

RAVF104DFT560R

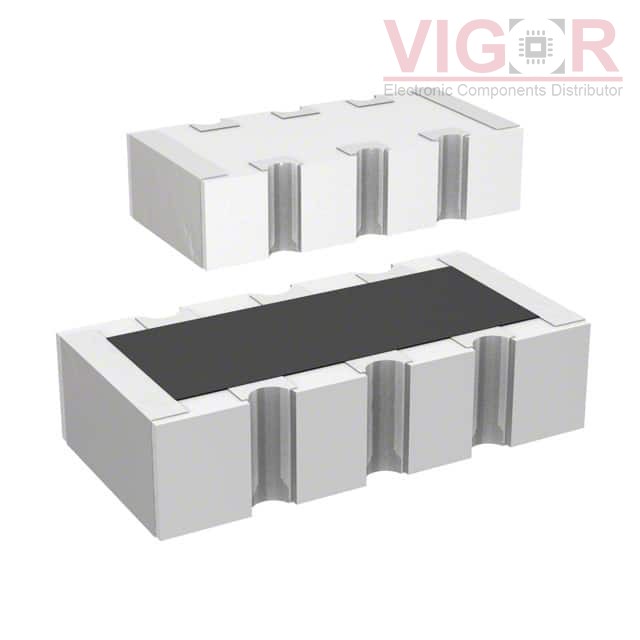

Image is for reference,
please contact us to get the real picture

Part No :

RAVF104DFT560R

Manufacturer
Stackpole Electronics, Inc.
Description
RES ARRAY 4 RES 560 OHM 0804
Catalog
Arrays/Networks Resistors
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
RAVF104DFT560R PDF
Availability
0 pieces
Unit Price
$0.02100

Current price of RAVF104DFT560R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RAVF104DFT560R Specifications
Type Description
Series:RAVF
Package:Tape & Reel (TR)
Part Status:Active
Circuit Type:Isolated
Resistance (Ohms):560
Tolerance:±1%
Number of Resistors:4
Resistor Matching Ratio:-
Resistor-Ratio-Drift:-
Number of Pins:8
Power Per Element:62.5mW
Temperature Coefficient:±200ppm/°C
Operating Temperature:-55°C ~ 155°C
Applications:Automotive AEC-Q200
Mounting Type:Surface Mount
Package / Case:0804, Convex, Long Side Terminals
Supplier Device Package:-
Size / Dimension:0.079" L x 0.039" W (2.00mm x 1.00mm)
Height - Seated (Max):0.020" (0.50mm)
