TNPW0402301RBYTD

TNPW0402301RBYTD

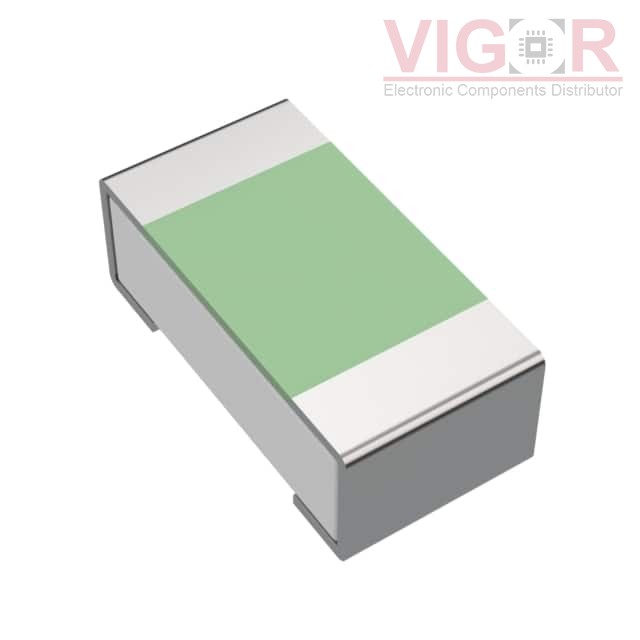

Image is for reference,
please contact us to get the real picture

Part No :

TNPW0402301RBYTD

Manufacturer
Vishay / Dale
Description
RES 301 OHM 0.1% 1/16W 0402
Catalog
Chip Resistors-Surface Mount
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
TNPW0402301RBYTD PDF
Availability
0 pieces
Unit Price
$0.59850

Current price of TNPW0402301RBYTD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TNPW0402301RBYTD Specifications
Type Description
Series:TNPW
Package:Tape & Reel (TR)
Part Status:Active
Resistance:301 Ohms
Tolerance:±0.1%
Power (Watts):0.063W, 1/16W
Composition:Thin Film
Features:Military
Temperature Coefficient:±10ppm/°C
Operating Temperature:-55°C ~ 125°C
Package / Case:0402 (1005 Metric)
Supplier Device Package:0402
Ratings:-
Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):0.016" (0.40mm)
Number of Terminations:2
Failure Rate:-
