PAT0603E5420BST1

PAT0603E5420BST1

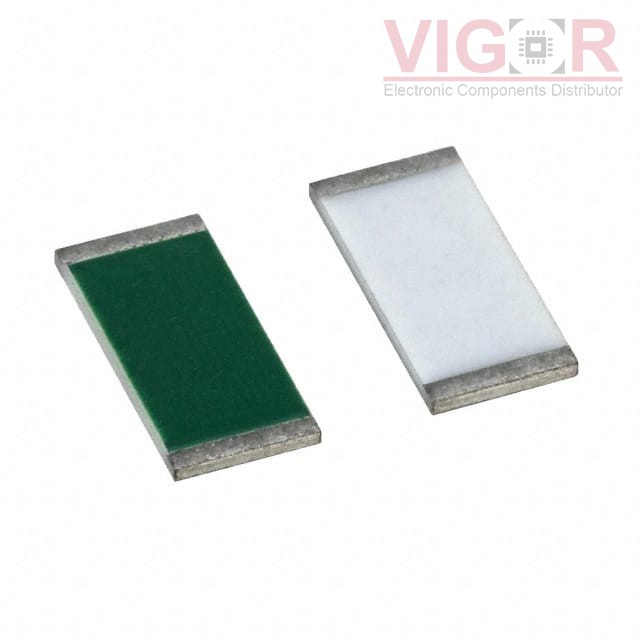

Image is for reference,
please contact us to get the real picture

Part No :

PAT0603E5420BST1

Manufacturer
Vishay
Description
RES SMD 542 OHM 0.1% 0.15W 0603
Catalog
Chip Resistors-Surface Mount
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
PAT0603E5420BST1 PDF
Availability
0 pieces
Unit Price
$0.29700

Current price of PAT0603E5420BST1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PAT0603E5420BST1 Specifications
Type Description
Series:PAT
Package:Tape & Reel (TR)
Part Status:Active
Resistance:542 Ohms
Tolerance:±0.1%
Power (Watts):0.15W
Composition:Thin Film
Features:Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient:±25ppm/°C
Operating Temperature:-55°C ~ 155°C
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603
Ratings:AEC-Q200
Size / Dimension:0.064" L x 0.032" W (1.63mm x 0.81mm)
Height - Seated (Max):0.018" (0.46mm)
Number of Terminations:2
Failure Rate:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT RK73G2BTTD2943F

RK73G2BTTD2943F

RESISTOR THICK FILM 1206
HOT CRCW12106K20JNEA

CRCW12106K20JNEA

RES SMD 6.2K OHM 5% 1/2W 1210

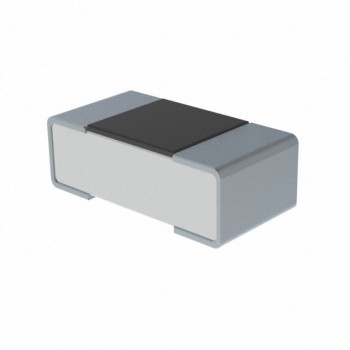

HOT RN73H1ETTP1322B50
