PWR163S-25-5600F

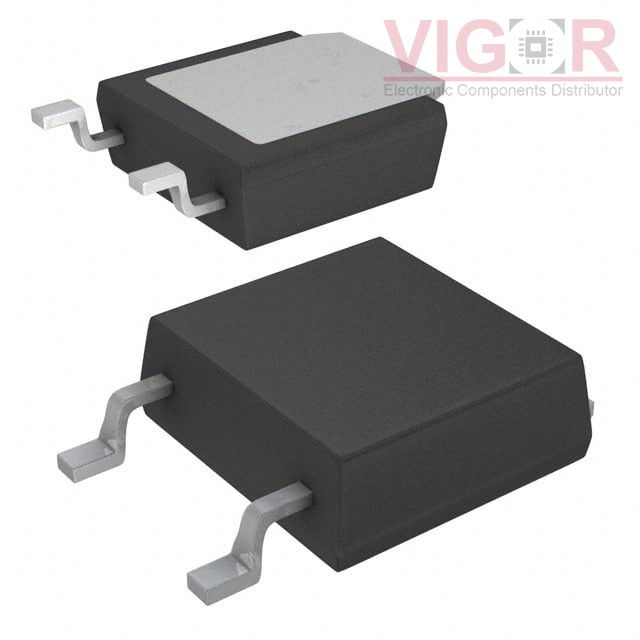

Image is for reference,
please contact us to get the real picture

Part No :: PWR163S-25-5600F

Manufacturer: J.W. Miller / Bourns

Description: RES 560 OHM 1% 25W D2PAK

Catalog: Chip Resistors-Surface Mount

Shipped from: HK warehouse

Expected Shipping Date: Aug 11 - Aug 15 2025

DataSheet: PWR163S-25-5600F PDF

Availability: 0 pieces

Unit Price: ~~$1.76000~~

Current price of PWR163S-25-5600F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PWR163S-25-5600F Specifications

Type	Description
Series:	PWR163
Package:	Tube
Part Status:	Active
Resistance:	560 Ohms
Tolerance:	±1%
Power (Watts):	25W
Composition:	Thick Film
Features:	Automotive AEC-Q200, Current Sense, Pulse Withstanding
Temperature Coefficient:	±100ppm/°C
Operating Temperature:	-55°C ~ 155°C
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	D2PAK
Ratings:	AEC-Q200
Size / Dimension:	0.320" L x 0.324" W (8.13mm x 8.22mm)
Height - Seated (Max):	0.125" (3.17mm)
Number of Terminations:	2
Failure Rate:	-

Please confirm the specifications of the products when ordering.
