TNPW0805196RBYEA

TNPW0805196RBYEA

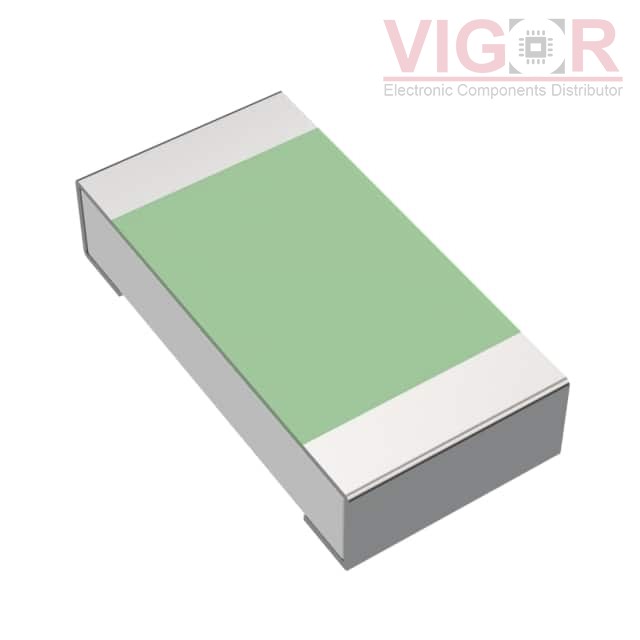

Image is for reference,
please contact us to get the real picture

Part No :

TNPW0805196RBYEA

Manufacturer
Vishay / Dale
Description
RES 196 OHM 0.1% 1/5W 0805
Catalog
Chip Resistors-Surface Mount
Shipped from
HK warehouse
Expected Shipping Date
Aug 22 - Aug 26 2025
DataSheet
TNPW0805196RBYEA PDF
Availability
0 pieces
Unit Price
$0.26999

Current price of TNPW0805196RBYEA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TNPW0805196RBYEA Specifications
Type Description
Series:TNPW e3
Package:Tape & Reel (TR)
Part Status:Active
Resistance:196 Ohms
Tolerance:±0.1%
Power (Watts):0.2W, 1/5W
Composition:Thin Film
Features:Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient:±10ppm/°C
Operating Temperature:-55°C ~ 155°C
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805
Ratings:AEC-Q200
Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):0.022" (0.55mm)
Number of Terminations:2
Failure Rate:-
