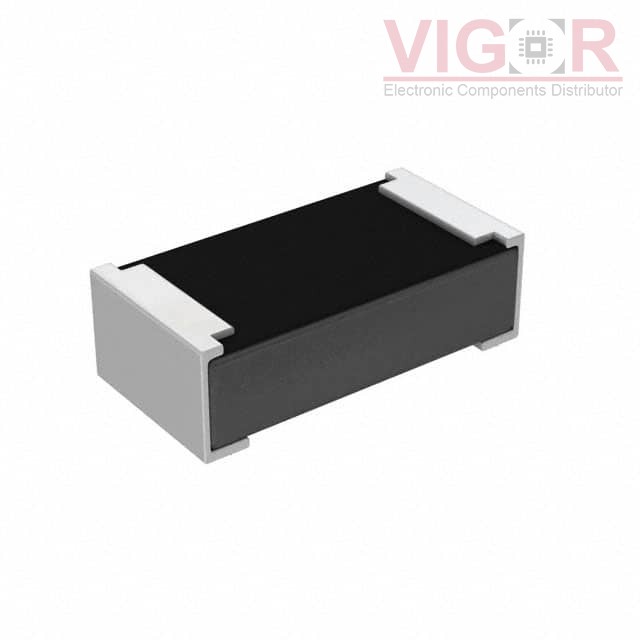

RCP0603B560RGEA

Image is for reference,
please contact us to get the real picture

Part No :: RCP0603B560RGEA

Manufacturer: Vishay / Dale

Description: RES SMD 560 OHM 2% 1.5W 0603

Catalog: Chip Resistors-Surface Mount

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: RCP0603B560RGEA PDF

Availability: 0 pieces

Unit Price: ~~$0.64638~~

Current price of RCP0603B560RGEA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RCP0603B560RGEA Specifications

Type	Description
Series:	RCP
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	560 Ohms
Tolerance:	±2%
Power (Watts):	1.5W
Composition:	Thick Film
Features:	Moisture Resistant
Temperature Coefficient:	±150ppm/°C
Operating Temperature:	-65°C ~ 155°C
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603
Ratings:	-
Size / Dimension:	0.063" L x 0.032" W (1.60mm x 0.81mm)
Height - Seated (Max):	0.023" (0.58mm)
Number of Terminations:	2
Failure Rate:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

RT0805BRE0726R1L

RES SMD 26.1 OHM 0.1% 1/8W 0805

HOT

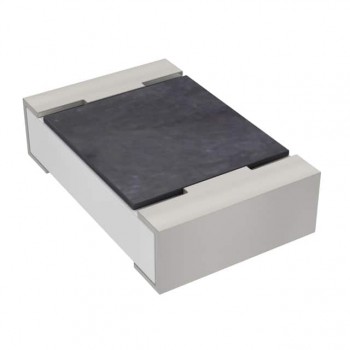

AT0805DRD0727R4L

RES SMD 27.4 OHM 0.5% 1/8W 0805

HOT

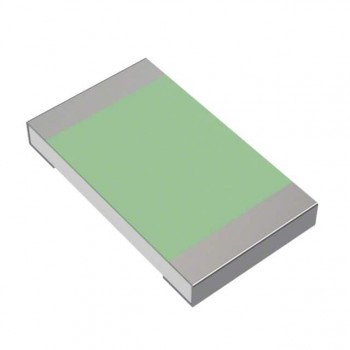

CHP1206L1R00JGT
