504BA503KDG2

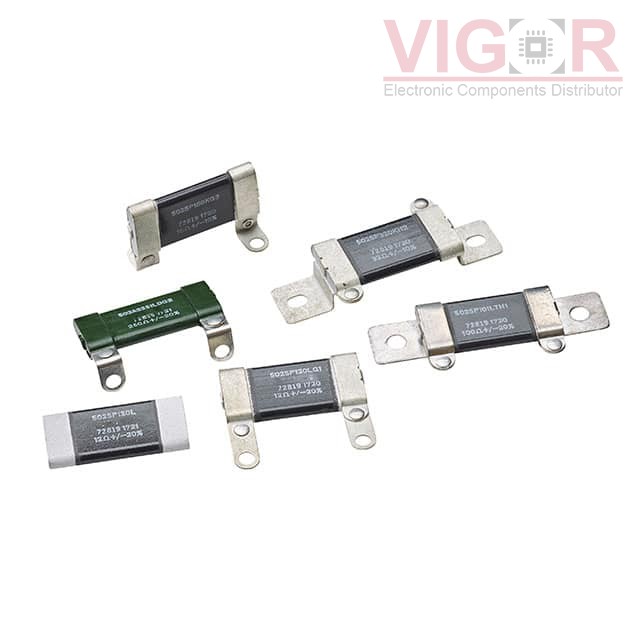

Image is for reference,
please contact us to get the real picture

Part No :: 504BA503KDG2

Manufacturer: Ohmite

Description: 20W 1800J 50K OHMS 10% SLAB

Catalog: Resistors-Chassis Mount

Shipped from: HK warehouse

Expected Shipping Date: Aug 09 - Aug 13 2025

DataSheet: 504BA503KDG2 PDF

Availability: 4 pieces

Unit Price: ~~$42.10000~~

Current price of 504BA503KDG2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

504BA503KDG2 Specifications

Type	Description
Series:	500
Package:	Box
Part Status:	Active
Resistance:	50 kOhms
Tolerance:	±10%
Power (Watts):	20W
Composition:	Ceramic
Temperature Coefficient:	0/ -2000ppm/°C
Operating Temperature:	-55°C ~ 230°C
Features:	Moisture Resistant, Non-Inductive, Pulse Withstanding
Coating, Housing Type:	-
Mounting Feature:	Brackets (not included)
Size / Dimension:	4.000" L x 0.252" W (101.60mm x 6.40mm)
Height - Seated (Max):	1.500" (38.10mm)
Lead Style:	Solder Lugs
Package / Case:	Radial, Flat Oval
Failure Rate:	-

Please confirm the specifications of the products when ordering.
