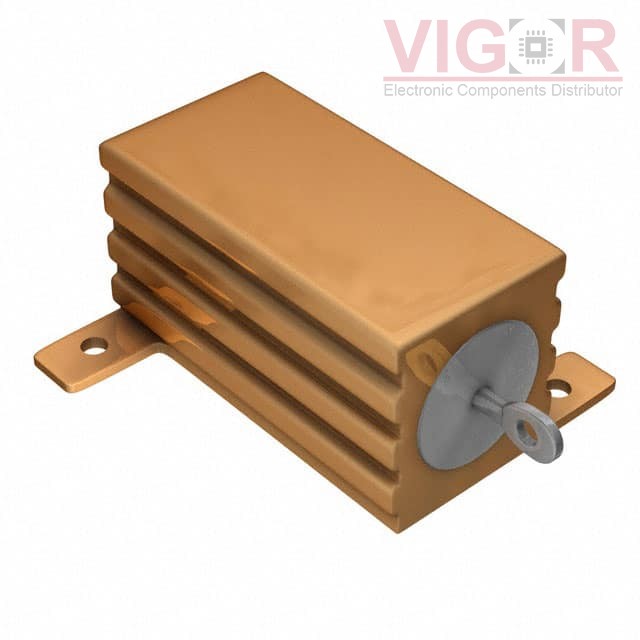

AHA500JB-56R

AHA500JB-56R

Image is for reference,
please contact us to get the real picture

Part No :

AHA500JB-56R

Manufacturer
Yageo
Description
RES CHAS MNT 56 OHM 5% 5W
Catalog
Resistors-Chassis Mount
Shipped from
HK warehouse
Expected Shipping Date
Aug 18 - Aug 22 2025
DataSheet
AHA500JB-56R PDF
Availability
0 pieces
Unit Price
$0.92600

Current price of AHA500JB-56R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AHA500JB-56R Specifications
Type Description
Series:AHA
Package:Bulk
Part Status:Active
Resistance:56 Ohms
Tolerance:±5%
Power (Watts):5W
Composition:Wirewound
Temperature Coefficient:±200ppm/°C
Operating Temperature:-55°C ~ 250°C
Features:-
Coating, Housing Type:Aluminum
Mounting Feature:Flanges
Size / Dimension:0.591" L x 0.650" W (15.00mm x 16.50mm)
Height - Seated (Max):0.358" (9.10mm)
Lead Style:Solder Lugs
Package / Case:Axial, Box
Failure Rate:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT THS25220RJ

THS25220RJ

RES CHAS MNT 220 OHM 5% 25W
HOT HS300 560R F

HS300 560R F

RES CHAS MNT 560 OHM 1% 300W

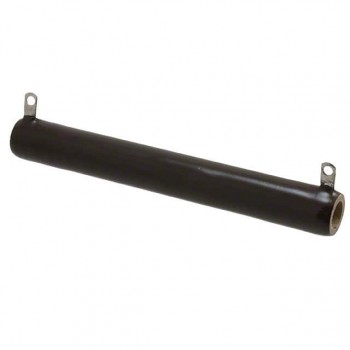

HOT L100J1K0E
