504BA104KDG2

504BA104KDG2

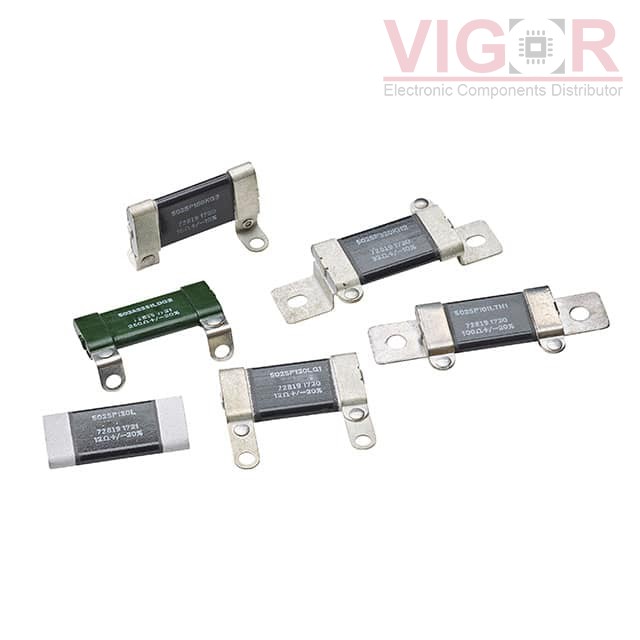

Image is for reference,
please contact us to get the real picture

Part No :

504BA104KDG2

Manufacturer
Ohmite
Description
20W 1800J 100K OHMS 10% SLAB
Catalog
Resistors-Chassis Mount
Shipped from
HK warehouse
Expected Shipping Date
Aug 16 - Aug 20 2025
DataSheet
504BA104KDG2 PDF
Availability
2 pieces
Unit Price
$42.10000

Current price of 504BA104KDG2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

504BA104KDG2 Specifications
Type Description
Series:500
Package:Box
Part Status:Active
Resistance:100 kOhms
Tolerance:±10%
Power (Watts):20W
Composition:Ceramic
Temperature Coefficient:0/ -2000ppm/°C
Operating Temperature:-55°C ~ 230°C
Features:Moisture Resistant, Non-Inductive, Pulse Withstanding
Coating, Housing Type:-
Mounting Feature:Brackets (not included)
Size / Dimension:4.000" L x 0.252" W (101.60mm x 6.40mm)
Height - Seated (Max):1.500" (38.10mm)
Lead Style:Solder Lugs
Package / Case:Radial, Flat Oval
Failure Rate:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
