CSM2F-8536-L100J00

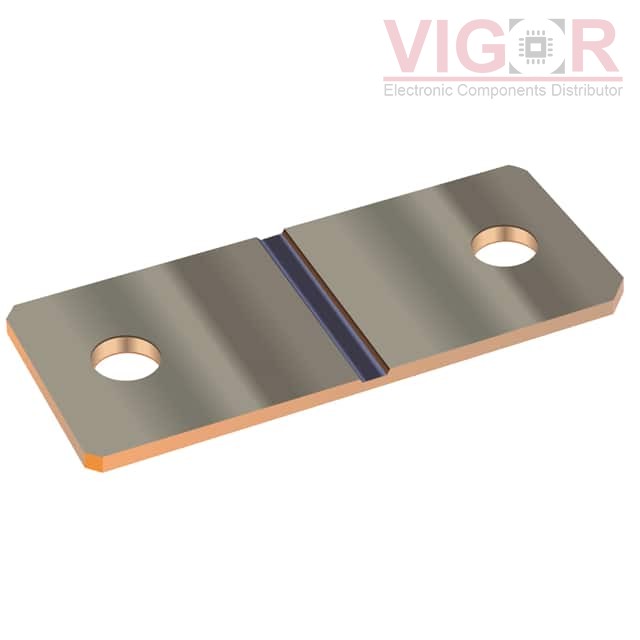

Image is for reference,
please contact us to get the real picture

Part No :: CSM2F-8536-L100J00

Manufacturer: J.W. Miller / Bourns

Description: SHUNTMETRIC 8536 L100 5% 36W TC5

Catalog: Resistors-Specialized

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: CSM2F-8536-L100J00 PDF

Availability: 0 pieces

Unit Price: ~~$28.76700~~

Current price of CSM2F-8536-L100J00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSM2F-8536-L100J00 Specifications

Type	Description
Series:	CSM2F-8536
Package:	Bag
Part Status:	Active
Type:	Shunt, Battery
Applications:	Automotive AEC-Q200
Composition:	-
Resistance:	100 µOhms
Tolerance:	±5%
Power (Watts):	36W
Temperature Coefficient:	-
Operating Temperature:	-40°C ~ 170°C
Mounting Type:	Surface Mount

Please confirm the specifications of the products when ordering.
