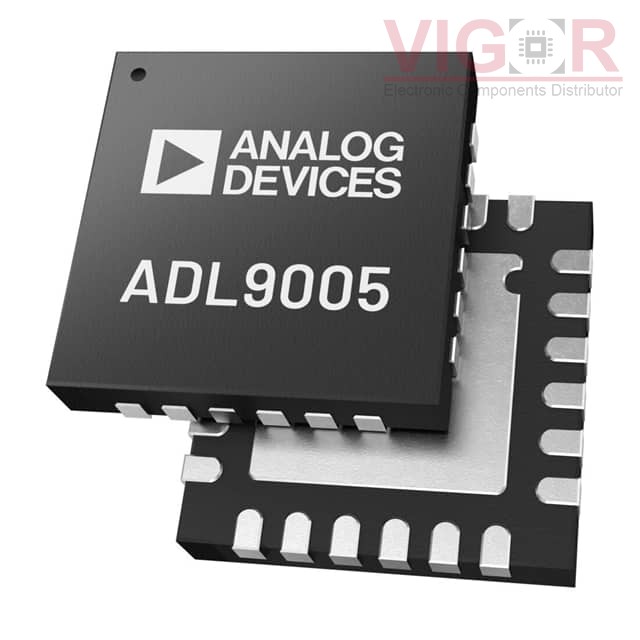

ADL9005ACPZN

ADL9005ACPZN

Image is for reference,
please contact us to get the real picture

Part No :

ADL9005ACPZN

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
DC TO 28 GHZ DISTRIBUTED LNA
Catalog
RF Amplifiers
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
ADL9005ACPZN PDF
Availability
0 pieces
Unit Price
$181.14000

Current price of ADL9005ACPZN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADL9005ACPZN Specifications
Type Description
Series:ADL
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Frequency:10MHz ~ 26.5GHz
P1dB:13.5dBm
Gain:19dB
Noise Figure:4dB
RF Type:General Purpose
Voltage - Supply:3V ~ 6V
Current - Supply:80mA
Test Frequency:10MHz ~ 20GHz
Mounting Type:Surface Mount
Package / Case:24-WFQFN Exposed Pad, CSP
Supplier Device Package:24-LFCSP-WQ (4x4)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT THS9001DBVR

THS9001DBVR

WIDE BAND MEDIUM POWER AMPLIFIER
HOT TRF1123IRTMR

TRF1123IRTMR

NARROW BAND MED POWER AMPLIFIER

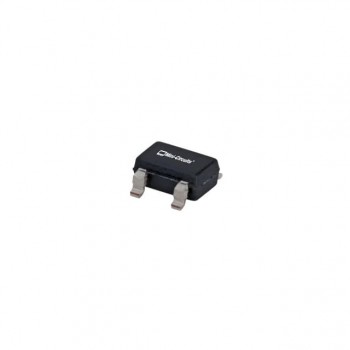

HOT PSA4-5043+
