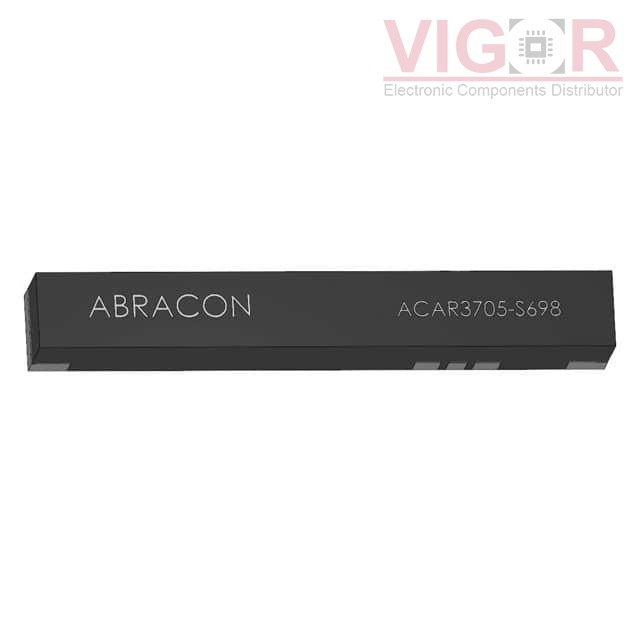

ACAR3705-S698

ACAR3705-S698

Image is for reference,
please contact us to get the real picture

Part No :

ACAR3705-S698

Manufacturer
Abracon
Description
4G/LTE CERAMIC CHIP ANT
Catalog
RF Antennas
Shipped from
HK warehouse
Expected Shipping Date
May 20 - May 24 2024
DataSheet
ACAR3705-S698 PDF
Availability
2 pieces
Unit Price
$4.82000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of ACAR3705-S698 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

ACAR3705-S698 Specifications
Type Description
Series:ACAR
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
RF Family/Standard:Cellular
Frequency Group:Wide Band
Frequency (Center/Band):830MHz, 1.94GHz, 2.6GHz
Frequency Range:700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz
Antenna Type:Chip
Number of Bands:3
VSWR:4.5
Return Loss:-4.34dB, 4.62dB, -6.49dB, -8.49dB, -8.5dB, -13.87dB
Gain:-1.13dBi, -3.77dBi
Power - Max:-
Features:-
Termination:Solder
Ingress Protection:-
Mounting Type:Surface Mount
Height (Max):0.197" (5.00mm)
Applications:2G, 3G, 4G, GSM, LTE
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
