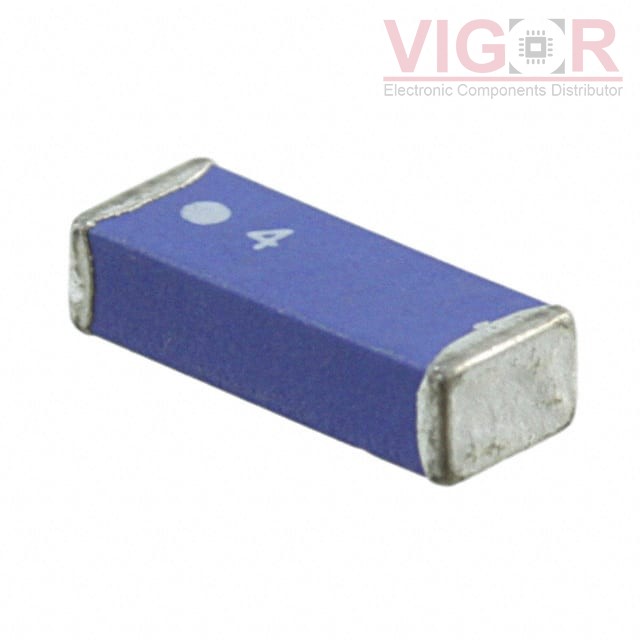

ANT5320LL04R2455A

Image is for reference,
please contact us to get the real picture

Part No :: ANT5320LL04R2455A

Manufacturer: Yageo

Description: RF ANT 2.4GHZ/5GHZ CHIP SLDR SMD

Catalog: RF Antennas

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: ANT5320LL04R2455A PDF

Availability: 0 pieces

Unit Price: ~~$0.35871~~

Current price of ANT5320LL04R2455A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ANT5320LL04R2455A Specifications

Type	Description
Series:	5320
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
RF Family/Standard:	WiFi
Frequency Group:	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band):	2.4GHz, 5GHz
Frequency Range:	2.375GHz ~ 2.525GHz, 5.05GHz ~ 5.95GHz
Antenna Type:	Chip
Number of Bands:	2
VSWR:	-
Return Loss:	-6.5dB
Gain:	2.09dBi, 4.32dBi
Power - Max:	1 W
Features:	-
Termination:	Solder
Ingress Protection:	-
Mounting Type:	Surface Mount
Height (Max):	0.055" (1.40mm)
Applications:	Wi-Fi

Please confirm the specifications of the products when ordering.
