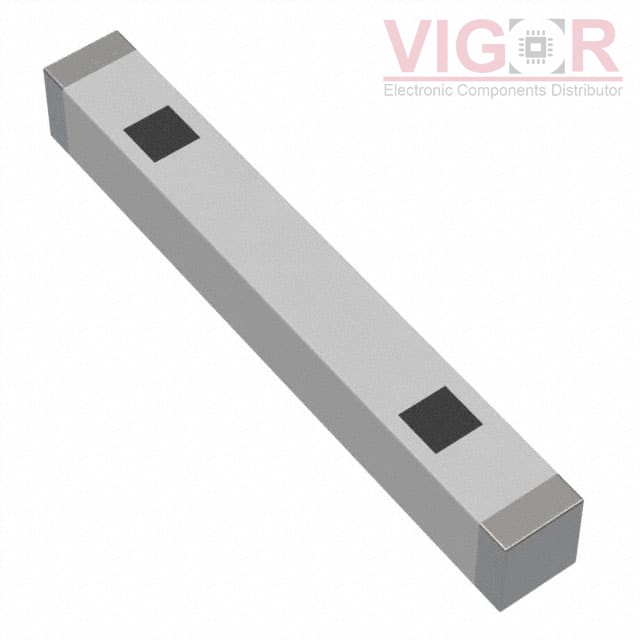

ANT8010LL05R1516A

Image is for reference,
please contact us to get the real picture

Part No :: ANT8010LL05R1516A

Manufacturer: Yageo

Description: RF ANT 1.575GHZ/1.602GHZ CHIP

Catalog: RF Antennas

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: ANT8010LL05R1516A PDF

Availability: 2777 pieces

Unit Price: ~~$0.90000~~

Current price of ANT8010LL05R1516A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ANT8010LL05R1516A Specifications

Type	Description
Series:	8010
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
RF Family/Standard:	Navigation
Frequency Group:	UHF (1GHz ~ 2GHz)
Frequency (Center/Band):	1.575GHz, 1.602GHz
Frequency Range:	-
Antenna Type:	Chip
Number of Bands:	2
VSWR:	-
Return Loss:	10dB
Gain:	1.53dBi, 1.69dBi
Power - Max:	1 W
Features:	-
Termination:	Solder
Ingress Protection:	-
Mounting Type:	Surface Mount
Height (Max):	0.039" (1.00mm)
Applications:	Galileo, GLONASS, GPS

Please confirm the specifications of the products when ordering.
