APAGM2704A-C2G

APAGM2704A-C2G

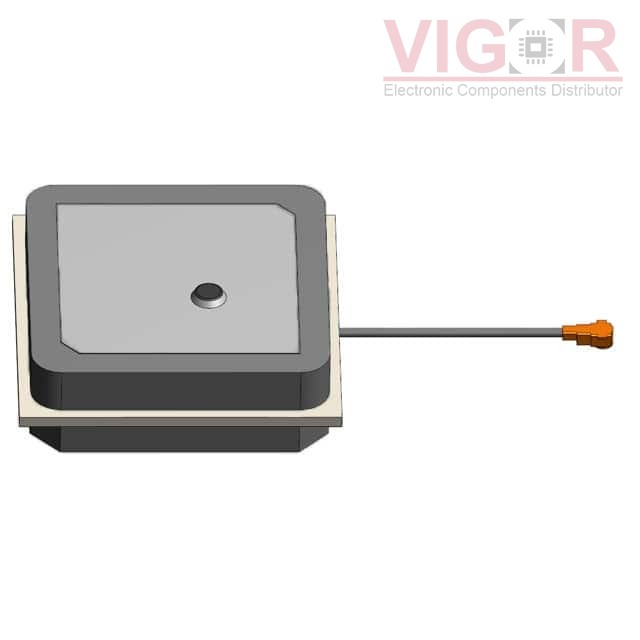

Image is for reference,
please contact us to get the real picture

Part No :

APAGM2704A-C2G

Manufacturer
Abracon
Description
RF ANT GNSS/GPS/GLONA ACT PATCH
Catalog
RF Antennas
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
APAGM2704A-C2G PDF
Availability
105 pieces
Unit Price
$11.85000

Current price of APAGM2704A-C2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

APAGM2704A-C2G Specifications
Type Description
Series:APAG
Package:Tray
Part Status:Active
RF Family/Standard:Navigation
Frequency Group:UHF (1GHz ~ 2GHz)
Frequency (Center/Band):1.575GHz, 1.601GHz
Frequency Range:1.574GHz ~ 1.576GHz, 1.6GHz ~ 1.602GHz
Antenna Type:Ceramic Patch
Number of Bands:2
VSWR:1.02, 1.03
Return Loss:-35.1dB, -37.9dB
Gain:4.5dBi
Power - Max:-
Features:Cable - 30mm, LNA
Termination:U.FL (UMCC), IPEX MHF1
Ingress Protection:-
Mounting Type:Surface Mount
Height (Max):0.157" (4.00mm)
Applications:GLONASS, GNSS, GPS
