ANT1003LL15R2455A

ANT1003LL15R2455A

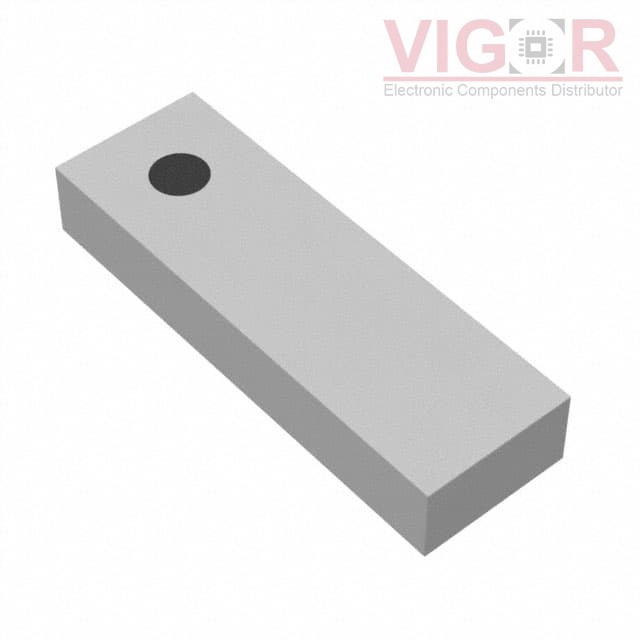

Image is for reference,
please contact us to get the real picture

Part No :

ANT1003LL15R2455A

Manufacturer
Yageo
Description
RF ANT 2.442GHZ/5.35GHZ CHIP SLD
Catalog
RF Antennas
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
ANT1003LL15R2455A PDF
Availability
0 pieces
Unit Price
$2.41253

Current price of ANT1003LL15R2455A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ANT1003LL15R2455A Specifications
Type Description
Series:1003
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
RF Family/Standard:General ISM
Frequency Group:UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band):2.442GHz, 5.35GHz
Frequency Range:2.4GHz ~ 2.484GHz, 5.15GHz ~ 5.85GHz
Antenna Type:Chip
Number of Bands:2
VSWR:-
Return Loss:6.5dB
Gain:1.55dBi, 2.45dBi
Power - Max:1 W
Features:-
Termination:Solder
Ingress Protection:-
Mounting Type:Surface Mount
Height (Max):0.063" (1.60mm)
Applications:ISM
