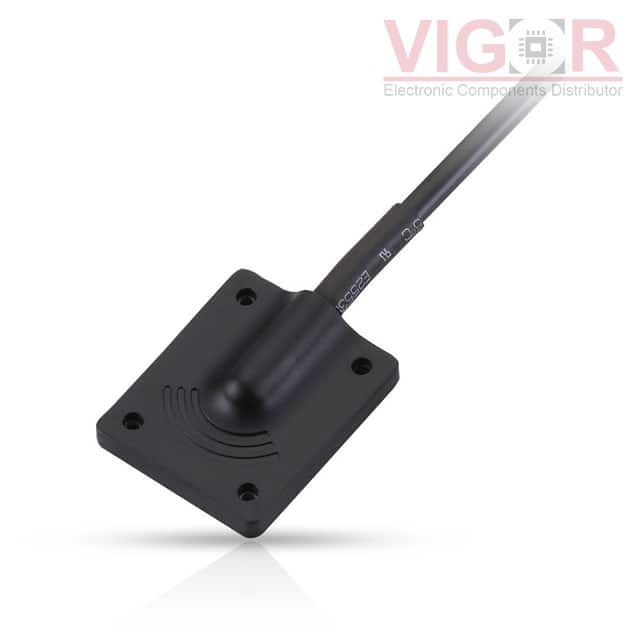

PCUWB01.01.0500G

PCUWB01.01.0500G

Image is for reference,
please contact us to get the real picture

Part No :

PCUWB01.01.0500G

Manufacturer
Taoglas
Description
ULTRA WIDE BAND FR4 ANTENNA 3-5G
Catalog
RF Antennas
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
PCUWB01.01.0500G PDF
Availability
10 pieces
Unit Price
$27.66000

Current price of PCUWB01.01.0500G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PCUWB01.01.0500G Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
RF Family/Standard:-
Frequency Group:SHF (f > 4GHz)
Frequency (Center/Band):4.05GHz, 7.1GHz, 9.15GHz
Frequency Range:3.1GHz ~ 5GHz, 6.2GHz ~ 8GHz, 8GHz ~ 10.3GHz
Antenna Type:Module
Number of Bands:3
VSWR:2, 3
Return Loss:-4dB, -6dB, -8dB
Gain:7.5dBi, 4.1dBi, 4.1dBi
Power - Max:-
Features:Cable - 500mm
Termination:SMA Male
Ingress Protection:-
Mounting Type:Adhesive
Height (Max):0.394" (10.00mm)
Applications:UWB
