ANT2525B00BT1516S

ANT2525B00BT1516S

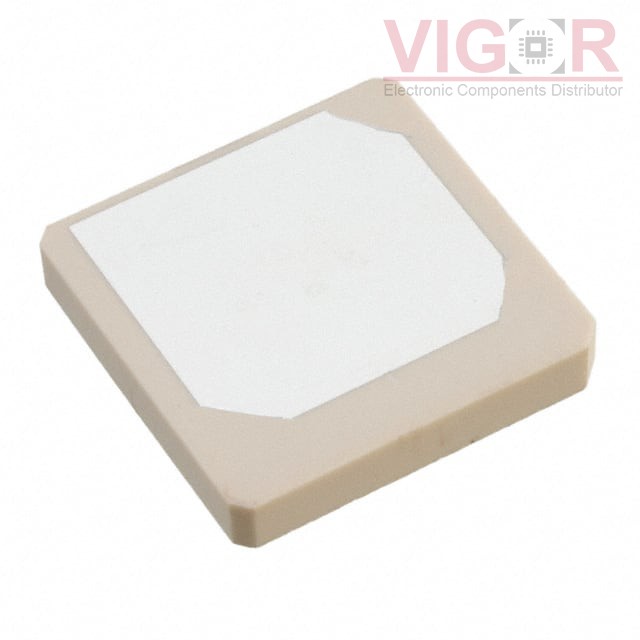

Image is for reference,
please contact us to get the real picture

Part No :

ANT2525B00BT1516S

Manufacturer
Yageo
Description
RF ANT 1.575/1.602GHZ CER PATCH
Catalog
RF Antennas
Shipped from
HK warehouse
Expected Shipping Date
Jun 29 - Jul 03 2025
DataSheet
ANT2525B00BT1516S PDF
Availability
0 pieces
Unit Price
$1.92474

Current price of ANT2525B00BT1516S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ANT2525B00BT1516S Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
RF Family/Standard:Navigation
Frequency Group:UHF (1GHz ~ 2GHz)
Frequency (Center/Band):1.575GHz, 1.602GHz
Frequency Range:1.575GHz ~ 1.606GHz
Antenna Type:Ceramic Patch
Number of Bands:2
VSWR:2
Return Loss:-32.828dB, -31.357dB
Gain:4.72dBi, 4.51dBi
Power - Max:-
Features:-
Termination:Solder
Ingress Protection:-
Mounting Type:Surface Mount
Height (Max):0.157" (4.00mm)
Applications:GLONASS, GPS
