W3223

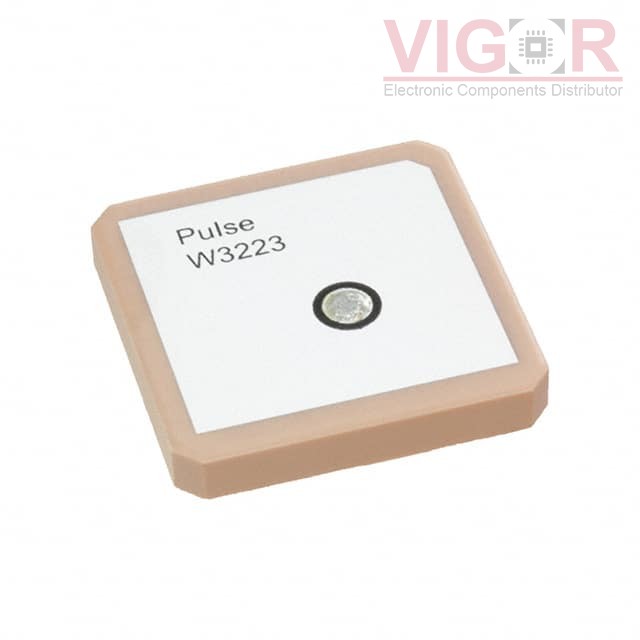

Image is for reference,
please contact us to get the real picture

Part No :: W3223

Manufacturer: PulseLarsen Antenna

Description: 25X25X4MM GPS/GLONASSPIN MOUNT

Catalog: RF Antennas

Shipped from: HK warehouse

Expected Shipping Date: Jul 03 - Jul 07 2025

DataSheet: W3223 PDF

Availability: 898 pieces

Unit Price: ~~$2.97000~~

Current price of W3223 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

W3223 Specifications

Type	Description
Series:	Ceramic Patch
Package:	Tray
Part Status:	Active
RF Family/Standard:	Navigation
Frequency Group:	UHF (1GHz ~ 2GHz)
Frequency (Center/Band):	1.575GHz, 1.602GHz
Frequency Range:	1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz
Antenna Type:	Ceramic Patch
Number of Bands:	2
VSWR:	-
Return Loss:	-10dB
Gain:	4dBi
Power - Max:	-
Features:	-
Termination:	Pin
Ingress Protection:	-
Mounting Type:	Adhesive
Height (Max):	0.157" (4.00mm)
Applications:	GLONASS, GPS

Please confirm the specifications of the products when ordering.
